Documents: 3RT23251BF40

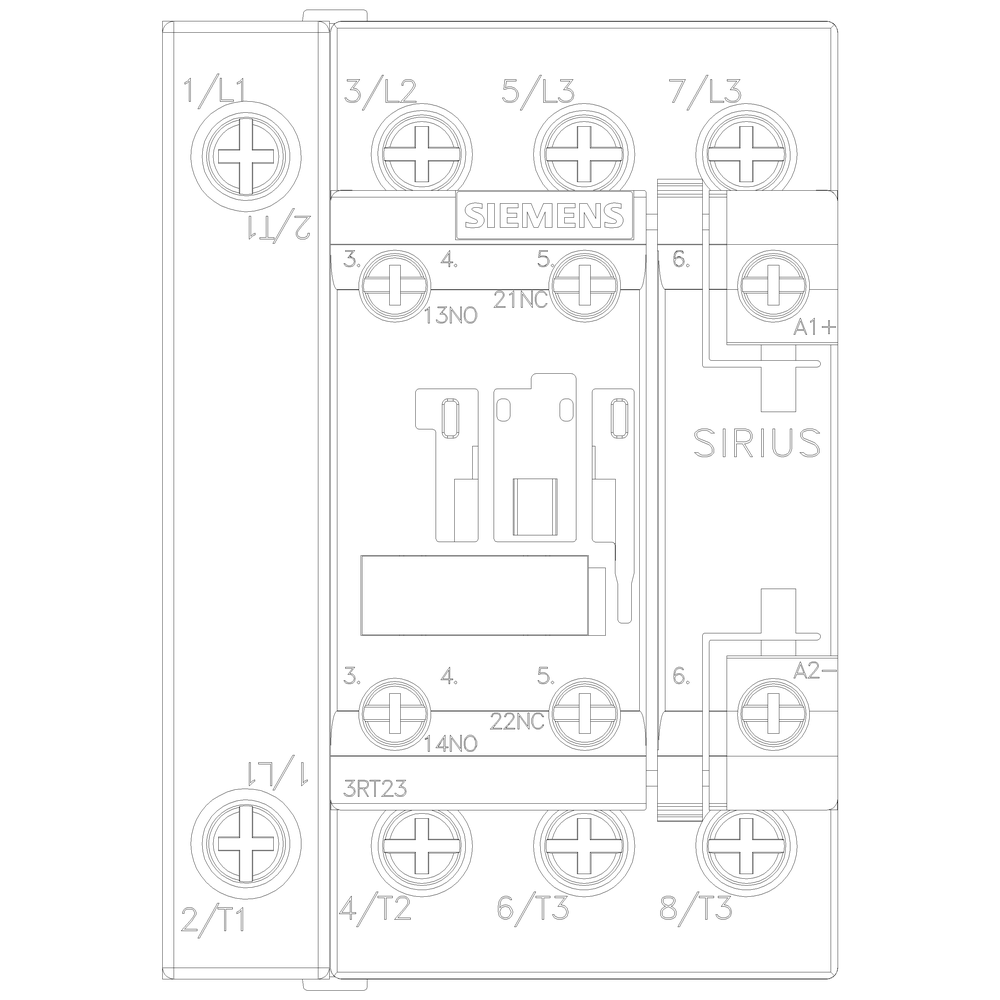

3RT23251BF40 | CONTACTOR RES S0 30A 110VDC 5NO/1NC SCRW | Siemens Electrical
CONT., AC-1, 22KW/400V, AC-1 35A, 1S+1OE, DC 110V, 4-POLE, 4S, SIZE S0, SCREW TERMINALS
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT23251BF40
Overview Details for 3RT23251BF40
Specifications
Item Number | 3RT23251BF40 |
Brand | Siemens Electrical |
Height | 5.120 IN |
Length | 3.670 IN |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 1 |
Number of auxiliary contacts as normally open contact | 1 |
Number of main contacts as normally open contact | 4 |
Rated control supply voltage Us at DC | 110 V |
Rated operation current Ie at AC-1; 400 V | 35 A |
Rated operation current Ie at AC-3; 400 V | 15.5 A |
Rated operation current Ie at AC-4; 400 V | 15.5 A |
Rated operation power at AC-3; 400 V | 7.5 kW |
Rated operation power at AC-4; 400 V | 7.5 kW |
Type of electrical connection of main circuit | Screw connection |
Voltage type for actuating | DC |
Weight | 1.36400 LB |
Width | 3.040 IN |
