3RT23251BB40 | CONTACTOR RES S0 30A 24VDC 5NO/1NC SCRW | Siemens Electrical

Cont., AC-1, 22KW/400V, AC-1 35a, 1s+1oe, DC 24V, 4-pole, 4s, size s0, screw terminals

Brand: Siemens ElectricalSKU: 3RT23251BB40

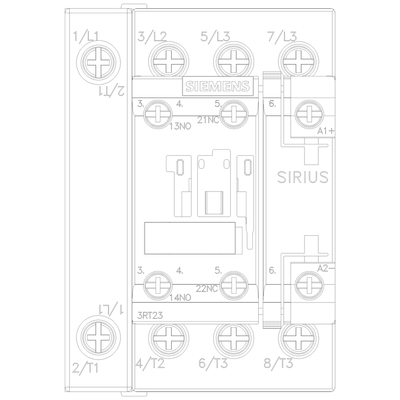

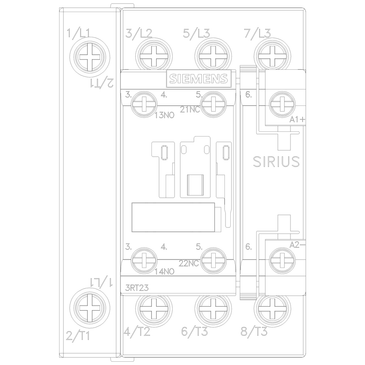

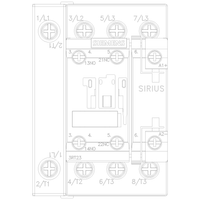

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT23251BB40

Item Number	3RT23251BB40
Brand	Siemens Electrical
Height	5.100 IN
Length	4.3 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	4
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	35 A
Rated operation current Ie at AC-3; 400 V	15.5 A
Rated operation current Ie at AC-4; 400 V	15.5 A
Rated operation power at AC-3; 400 V	0.0075 kW
Rated operation power at AC-4; 400 V	0.0075 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Weight	1.360 LB
Width	4.700 IN
