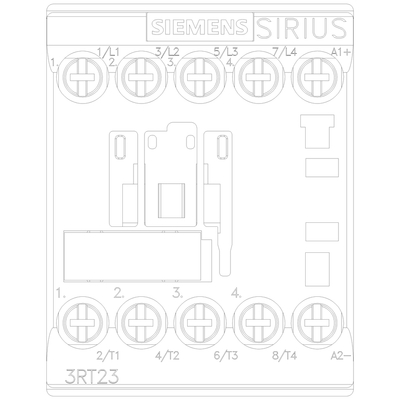

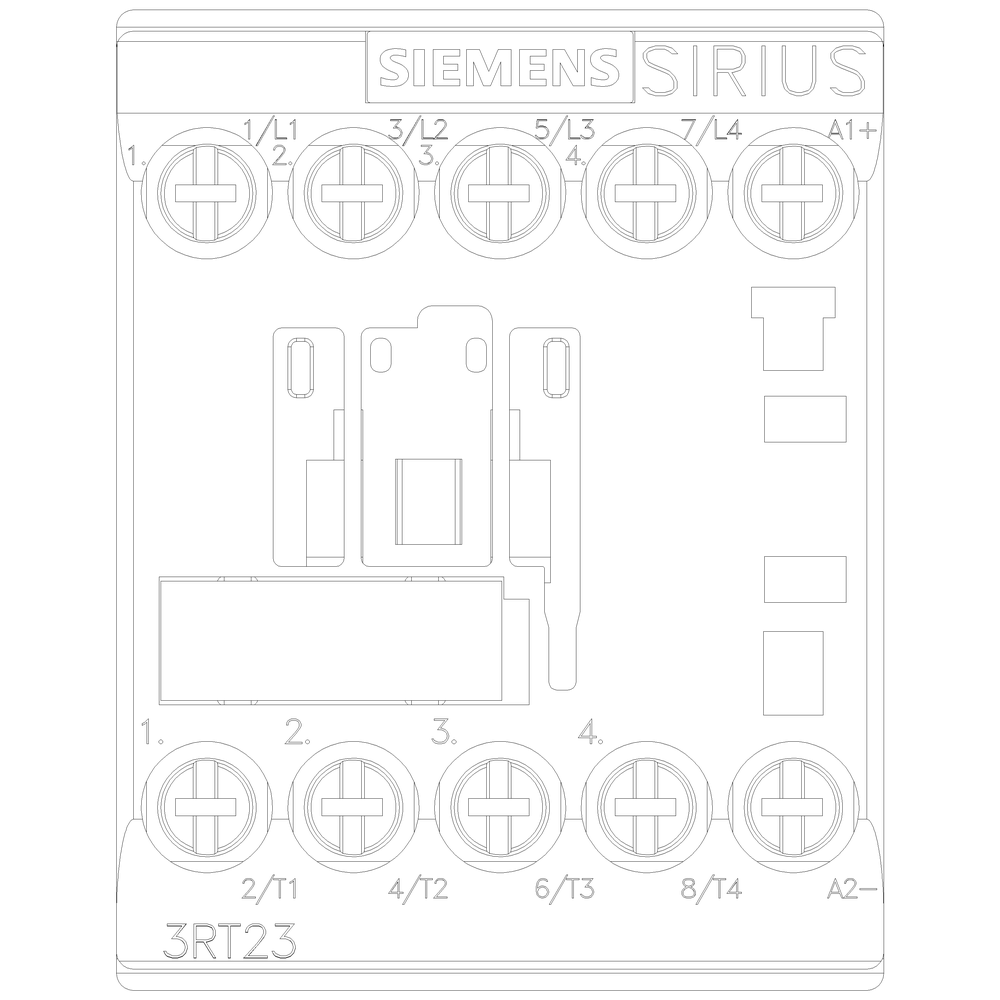

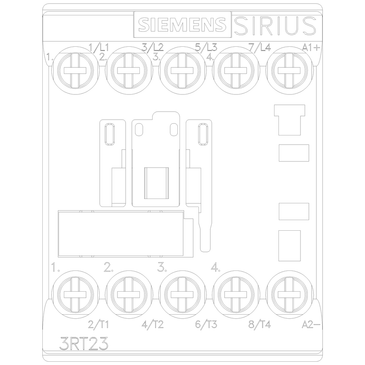

3RT23171BB40 | CONTACTOR RES S00 20A 24VDC 4NO SCRW | Siemens Electrical

Cont., AC-1, 14.5KW/400V, AC-1 22a, DC 24V, 4-pole, 4s, size s00, screw terminals

Brand: Siemens ElectricalSKU: 3RT23171BB40

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT23171BB40

Item Number	3RT23171BB40
Brand	Siemens Electrical
Height	1.950 IN
Length	3 IN
Modular version	TRUE
Number of main contacts as normally open contact	4
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	22 A
Rated operation current Ie at AC-3; 400 V	0
Rated operation current Ie at AC-4; 400 V	8.5 A
Rated operation power at AC-3; 400 V	5.5 kW
Rated operation power at AC-4; 400 V	4 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Weight	0.64500 LB
Width	2.800 IN
