3RT23171AP60 | CONTACTOR RES S00 20A 240VAC 4NO SCRW | Siemens Electrical

Cont., AC-1, 14.5KW/400V, AC-1 22a, AC 220v 50HZ 240v 60 HZ, 4-pole, 4NO, sz s00, screw terminal

Brand: Siemens ElectricalSKU: 3RT23171AP60

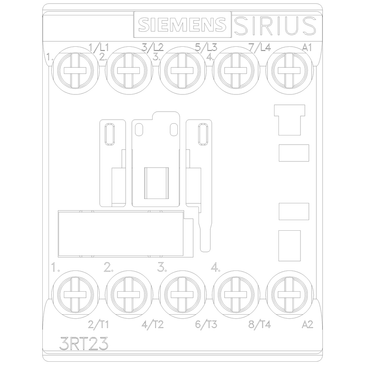

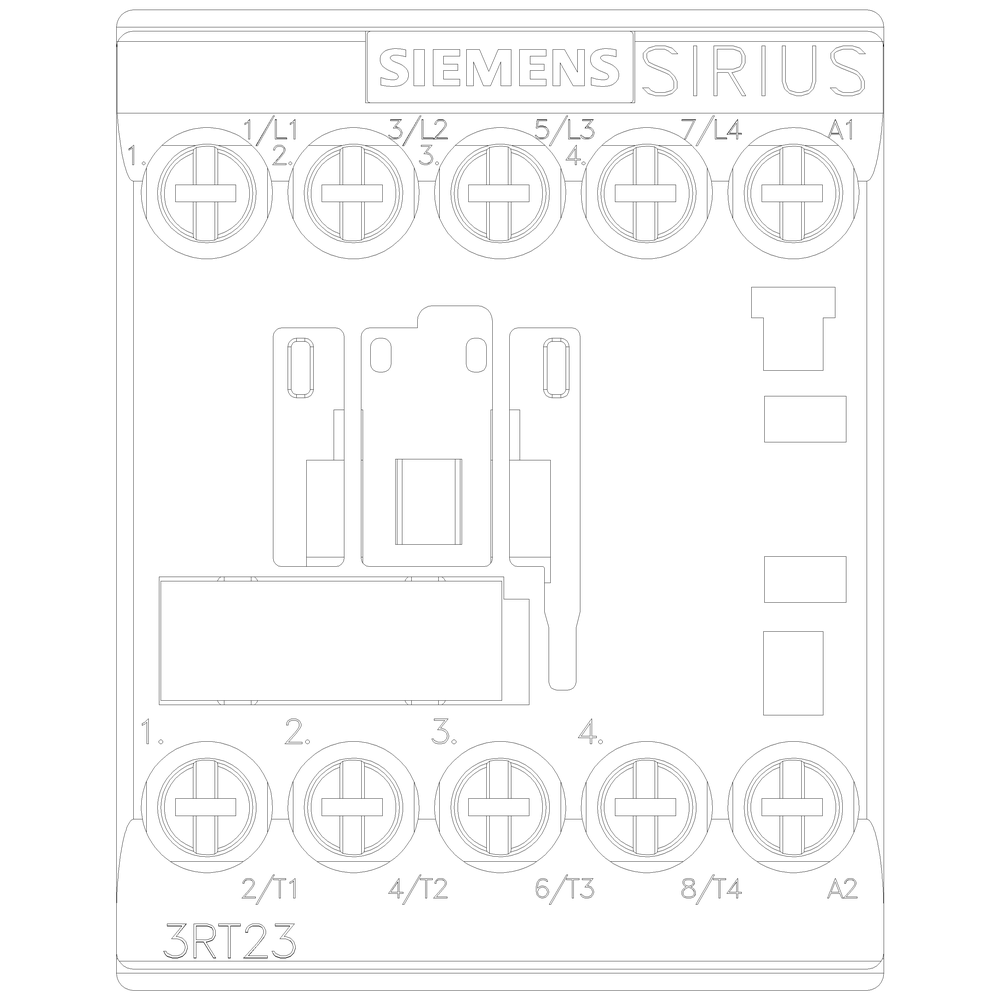

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT23171AP60

Item Number	3RT23171AP60
Brand	Siemens Electrical
Height	3.080 IN
Length	2.450 IN
Modular version	TRUE
Number of main contacts as normally open contact	4
Rated control supply voltage Us at AC 50HZ	220 V
Rated control supply voltage Us at AC 60HZ	240 V
Rated operation current Ie at AC-1; 400 V	22 A
Rated operation current Ie at AC-3; 400 V	0
Rated operation current Ie at AC-4; 400 V	8.5 A
Rated operation power at AC-3; 400 V	5.5 kW
Rated operation power at AC-4; 400 V	4 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	0.48400 LB
Width	1.970 IN
