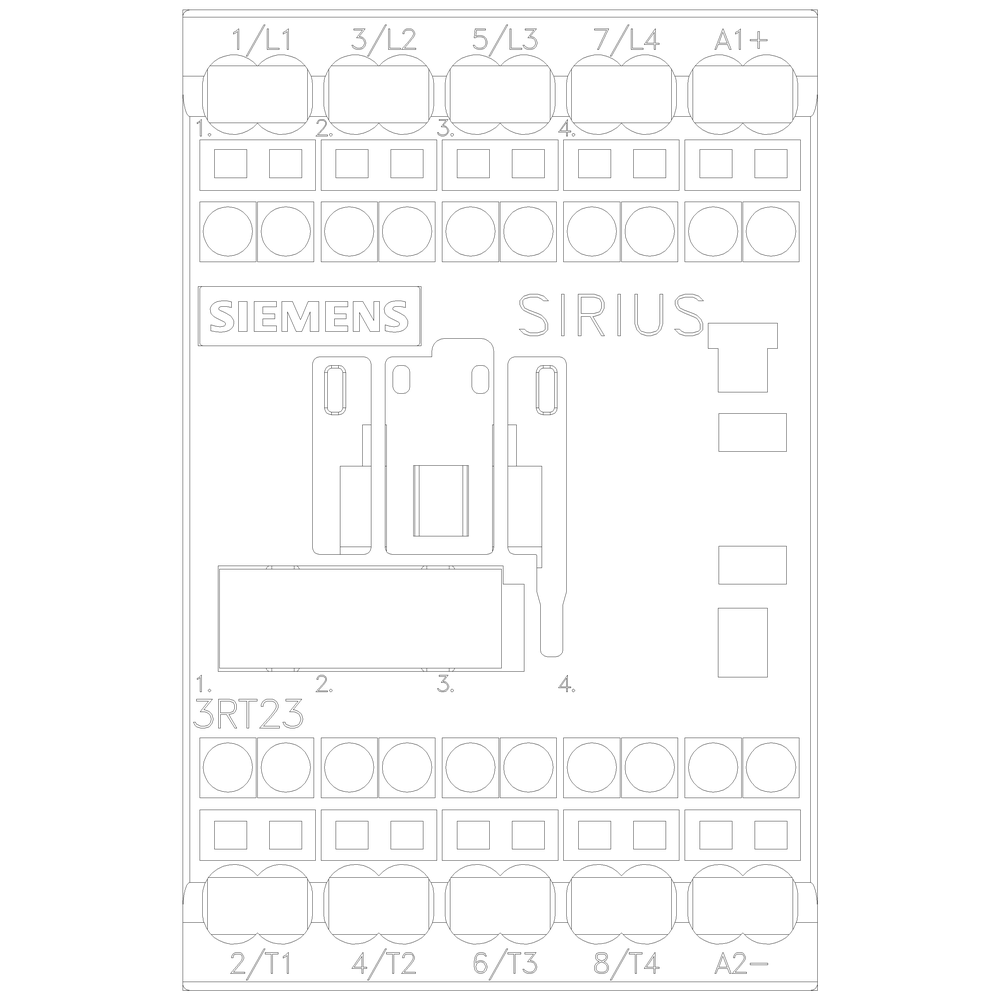

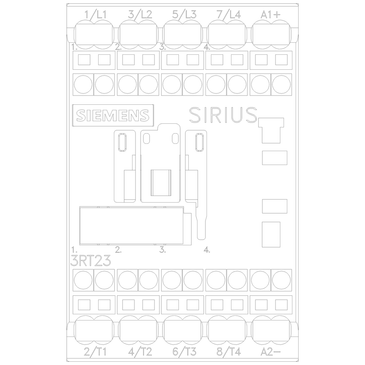

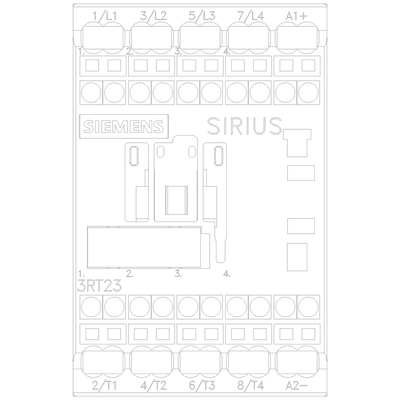

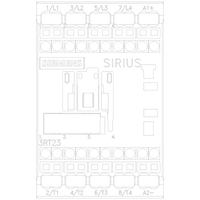

3RT23162BB40 | CONTACTOR RES S00 18A 24VDC 4NO SPRG | Siemens Electrical

Cont., AC-1, 12KW/400V, AC-1 18a, DC 24V, 4-pole, 4s, size s00, spring-type term.

Brand: Siemens ElectricalSKU: 3RT23162BB40

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT23162BB40

Item Number	3RT23162BB40
Brand	Siemens Electrical
Height	2.850 IN
Length	1.700 IN
Modular version	TRUE
Number of main contacts as normally open contact	4
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	18 A
Rated operation current Ie at AC-3; 400 V	0.375
Rated operation current Ie at AC-4; 400 V	8.5 A
Rated operation power at AC-3; 400 V	4 kW
Rated operation power at AC-4; 400 V	4 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	DC
Weight	0.660 LB
Width	3.150 IN
