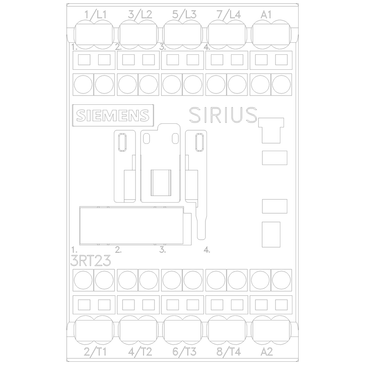

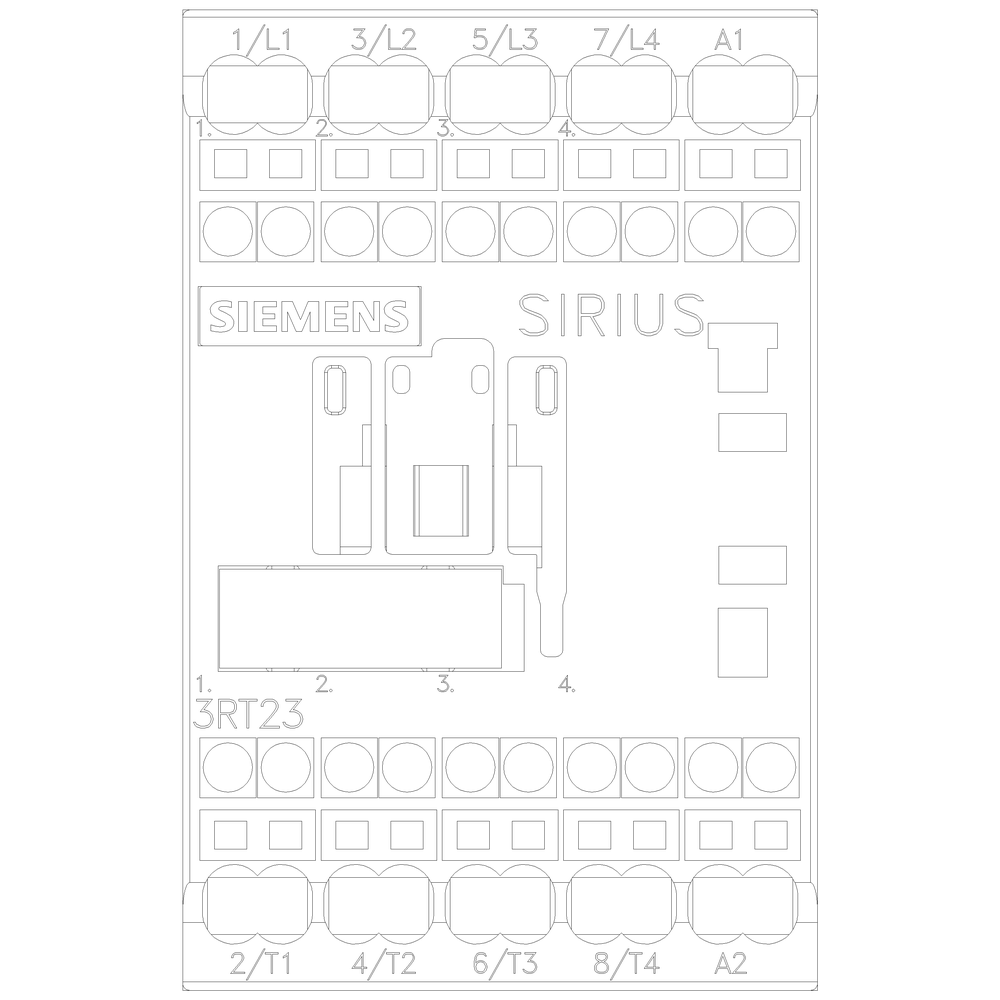

3RT23162AK60 | CONTACTOR RES S00 18A 120VAC 4NO SPRG | Siemens Electrical

CONTACTOR, AC-1, 14.5KW/400V, AC-1 22A, AC 110V 50HZ/120V 60HZ, 4-POLE, 4NO, SZ S00, SPRING-LOADED TERMINAL

Brand: Siemens ElectricalSKU: 3RT23162AK60

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT23162AK60

Item Number	3RT23162AK60
Brand	Siemens Electrical
Height	3.080 IN
Length	2.920 IN
Modular version	TRUE
Number of main contacts as normally open contact	4
Rated control supply voltage Us at AC 50HZ	110 V
Rated control supply voltage Us at AC 60HZ	120 V
Rated operation current Ie at AC-1; 400 V	18 A
Rated operation current Ie at AC-3; 400 V	0.375
Rated operation current Ie at AC-4; 400 V	8.5 A
Rated operation power at AC-3; 400 V	4 kW
Rated operation power at AC-4; 400 V	4 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	AC
Weight	0.52800 LB
Width	1.970 IN
