3RT20473XB400LA2 | CONT. F.RAIL.AC3:55KW.1NO+1NC.24 V DC | Siemens Electrical

CONT. F.RAIL.AC3: 55KW/400V. 1NO+1NC. 24VDC. 0.7...1.25*US. 3-POLE. 3NO. SIZE: S3. INTEGRATED VARISTOR. SPRING-TYPE TERMINALS

Brand: Siemens ElectricalSKU: 3RT20473XB400LA2

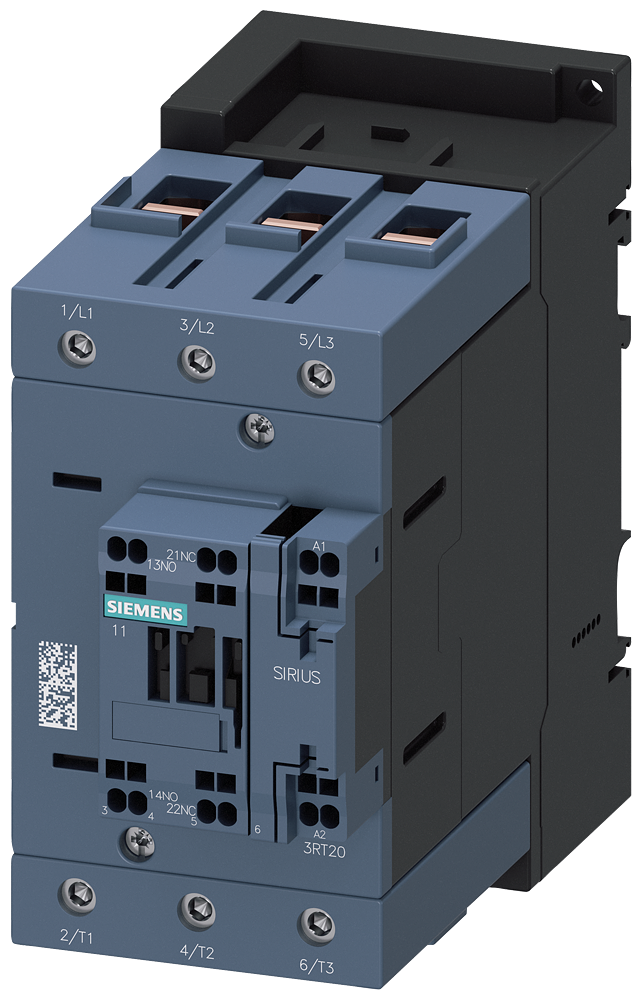

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20473XB400LA2

Item Number	3RT20473XB400LA2
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	130 A
Rated operation current Ie at AC-3; 400 V	110 A
Rated operation current Ie at AC-4; 400 V	97 A
Rated operation power at AC-3; 400 V	55 kW
Rated operation power at AC-4; 400 V	55 kW
Rated operation power NEMA	55.16240625 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Weight	3.97800 LB
