3RT20473NF30 | CONTACTOR.AC3:55KW.1NO+1NC.83-155VAC/DC | Siemens Electrical

CONTACTOR. AC3: 55KW/400V. 1NO+1NC. 83-155V AC/DC. 3-POLE. 3NO. SIZE: S3. SPRING-TYPE TERMINALS. INTEGRATED VARISTOR

Brand: Siemens ElectricalSKU: 3RT20473NF30

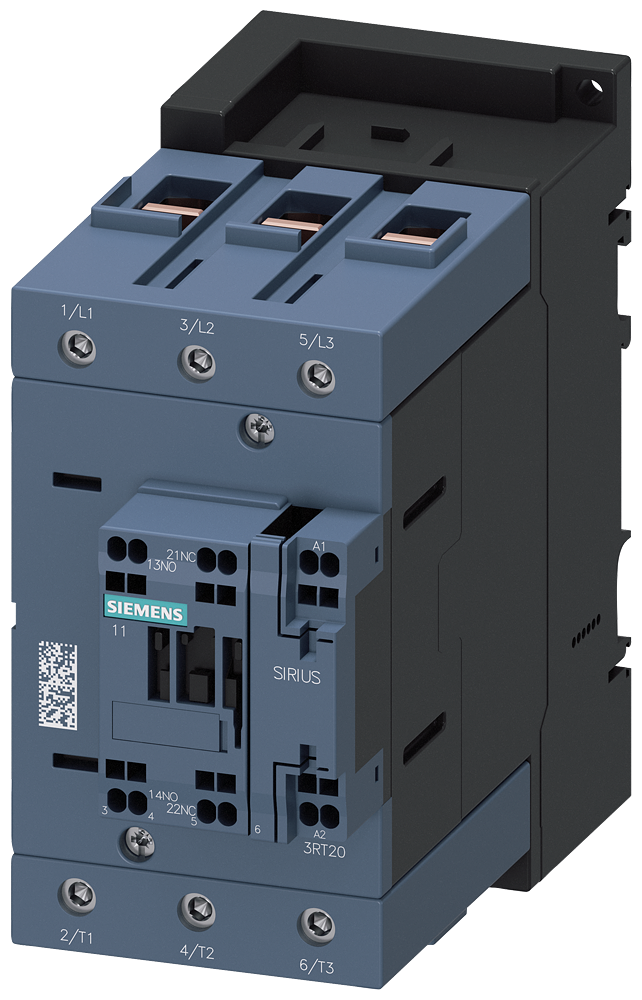

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20473NF30

Item Number	3RT20473NF30
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	83 V
Rated control supply voltage Us at AC 60HZ	83 V
Rated control supply voltage Us at DC	83 V
Rated operation current Ie at AC-1; 400 V	130 A
Rated operation current Ie at AC-3; 400 V	110 A
Rated operation current Ie at AC-4; 400 V	97 A
Rated operation power at AC-3; 400 V	55 kW
Rated operation power NEMA	55.16240625 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC/DC
Weight	3.97800 LB
