3RT20463NF30 | CONTACTOR | AC3:45KW | 1NO+1NC | 83-155V AC/D | Siemens Electrical

Brand: Siemens ElectricalSKU: 3RT20463NF30

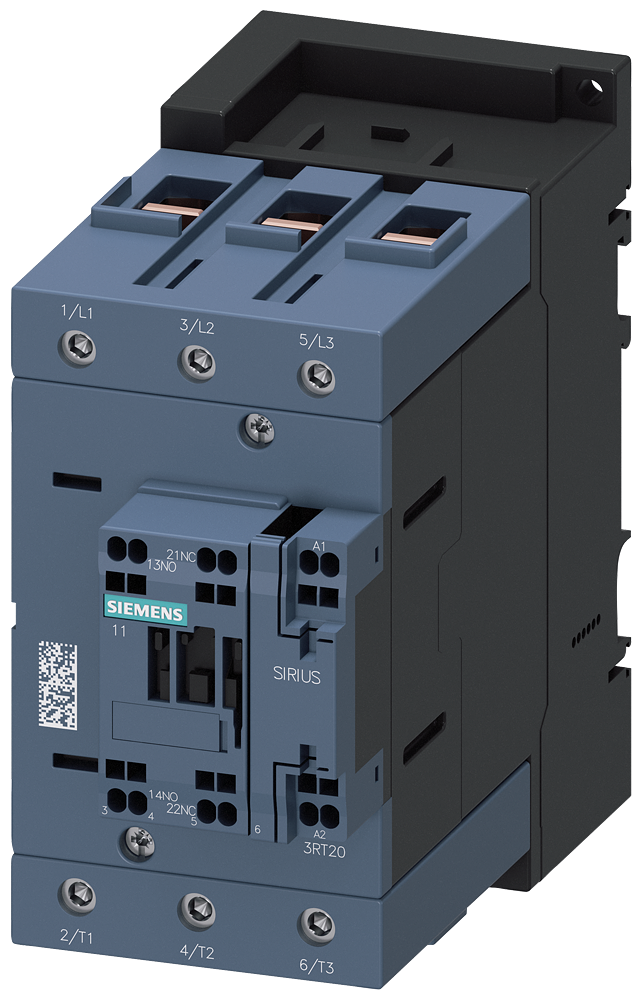

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20463NF30

Item Number	3RT20463NF30
Brand	Siemens Electrical
Height	3.150 IN
Length	6.690 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	83 V
Rated control supply voltage Us at AC 60HZ	83 V
Rated control supply voltage Us at DC	83 V
Rated operation current Ie at AC-1; 400 V	130 A
Rated operation current Ie at AC-3; 400 V	95 A
Rated operation current Ie at AC-4; 400 V	80 A
Rated operation power at AC-3; 400 V	45 kW
Rated operation power NEMA	55.16240625 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC/DC
Weight	4.00100 LB
Width	6.3 IN
