3RT20463NB343MA0 | CONTACTOR.AC3:45KW.2NO+2NC.20-33VAC/DC | Siemens Electrical

CONTACTOR. AC3: 45KW/400V. 2NO+2NC. 20-33VAC/DC. 3-POLE. 3NO. SIZE: S3. SPRING-TYPE TERMINALS. INTEGRATED VARISTOR. PERM. MOUNT. AUX. SWITCH

Brand: Siemens ElectricalSKU: 3RT20463NB343MA0

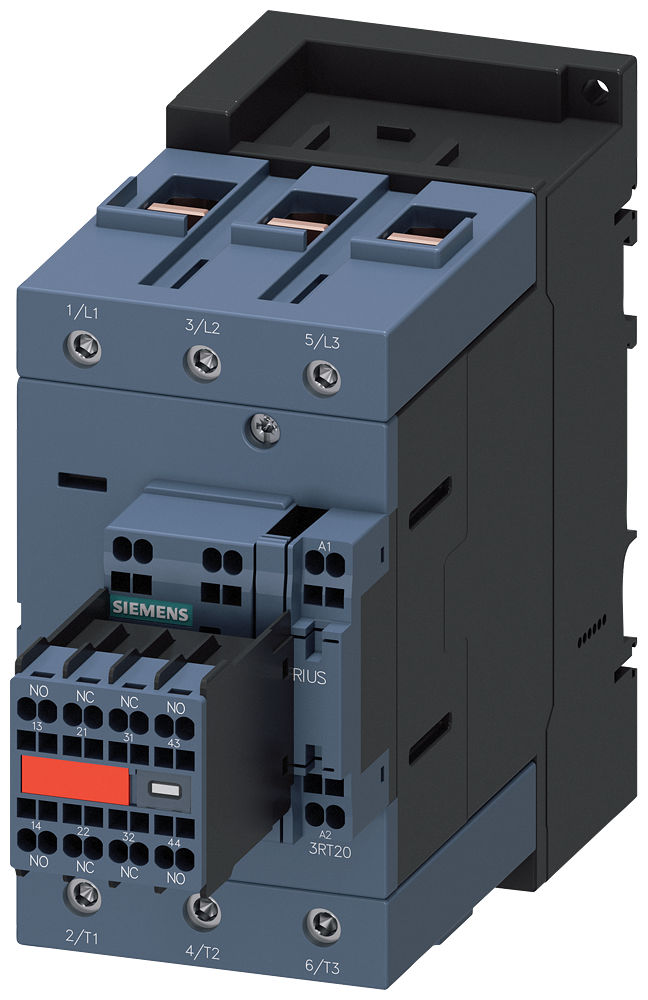

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20463NB343MA0

Item Number	3RT20463NB343MA0
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	20 V
Rated control supply voltage Us at AC 60HZ	20 V
Rated control supply voltage Us at DC	20 V
Rated operation current Ie at AC-1; 400 V	130 A
Rated operation current Ie at AC-3; 400 V	95 A
Rated operation current Ie at AC-4; 400 V	80 A
Rated operation power at AC-3; 400 V	45 kW
Rated operation power NEMA	55.16240625 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC/DC
Weight	4.180 LB
