Documents: 3RT20463KB443MA0

Datasheet

3RT20463KB443MA0 | COUPL. CONT.. AC3:45KW. 2NO+2NC. 24VDC | Siemens Electrical

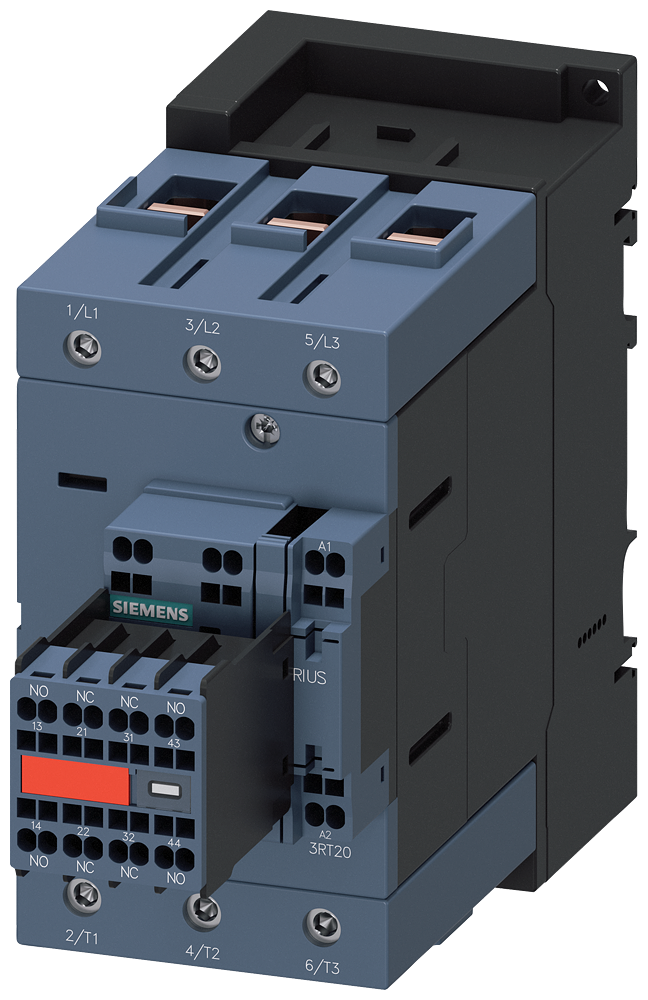

Power contactor. AC-3 95 A. 45 kW / 400 V 2 NO + 2 NC. 24 V DC 3-pole. 3 NO. Size S3 Spring-type terminal Integrated varistor Captive auxiliary switch. suitable for 2 A PLC outputs

Brand: Siemens ElectricalSKU: 3RT20463KB443MA0

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT20463KB443MA0

Jump to: Overview & Specifications Reviews

Overview Details for 3RT20463KB443MA0

Specifications

Item Number	3RT20463KB443MA0
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	130 A
Rated operation current Ie at AC-3; 400 V	95 A
Rated operation current Ie at AC-4; 400 V	80 A
Rated operation power at AC-3; 400 V	45 kW
Rated operation power NEMA	55.16240625 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Weight	4.18900 LB
