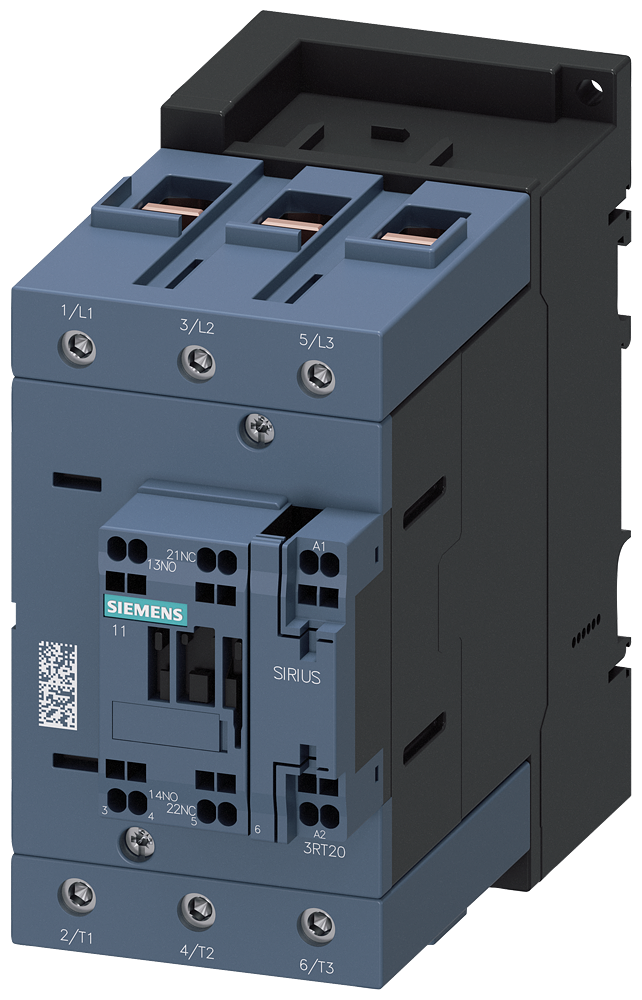

3RT20463AN20 | CONT..AC3:45KW.1NO+1NC.220VAC 50/60HZ | Siemens Electrical

CONTACTOR. AC-3 45 KW/400 V. AC 220 V 50/60 HZ. 3-POLE. SIZE S3. CAGE CLAMP

Brand: Siemens ElectricalSKU: 3RT20463AN20

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20463AN20

Item Number	3RT20463AN20
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	220 V
Rated control supply voltage Us at AC 60HZ	220 V
Rated operation current Ie at AC-1; 400 V	130 A
Rated operation current Ie at AC-3; 400 V	95 A
Rated operation current Ie at AC-4; 400 V	80 A
Rated operation power at AC-3; 400 V	45 kW
Rated operation power NEMA	55.16240625 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	3.72900 LB
