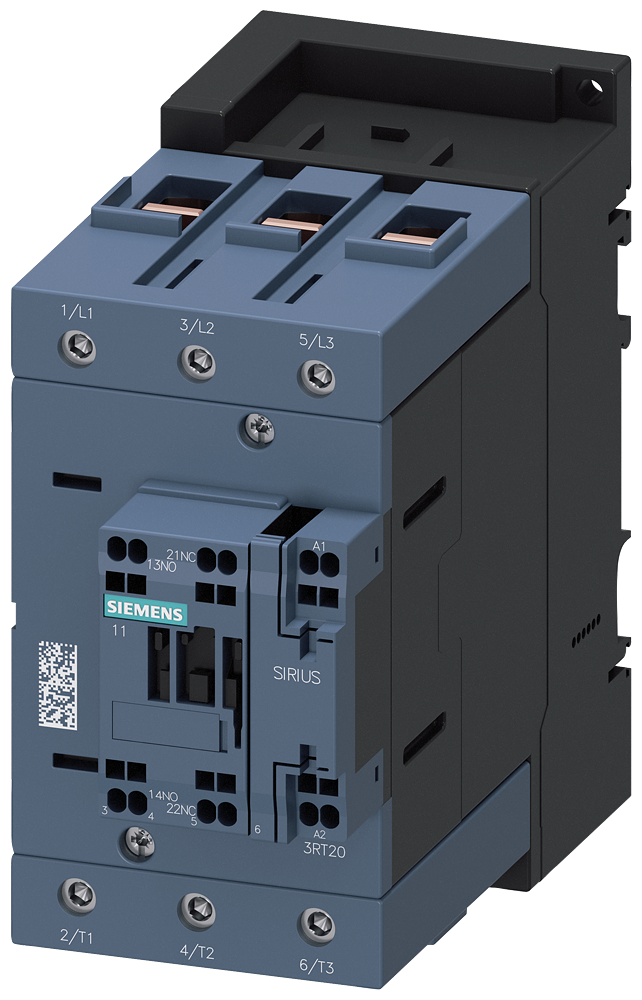

3RT20463AK60 | CONTACTOR.AC3:45KW.110VAC 50HZ/120V 60HZ | Siemens Electrical

Contactor. AC-3 45 KW/400 v. AC 110 v 50 HZ 120 v 60 HZ. 3-pole. size s3. cage clamp

Brand: Siemens ElectricalSKU: 3RT20463AK60

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20463AK60

Item Number	3RT20463AK60
Brand	Siemens Electrical
Height	6.550 IN
Length	6.3 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	110 V
Rated control supply voltage Us at AC 60HZ	120 V
Rated operation current Ie at AC-1; 400 V	130 A
Rated operation current Ie at AC-3; 400 V	95 A
Rated operation current Ie at AC-4; 400 V	80 A
Rated operation power at AC-3; 400 V	45 kW
Rated operation power NEMA	55.16240625 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	3.760 LB
Width	3.250 IN
