Documents: 3RT20461NB300CC0

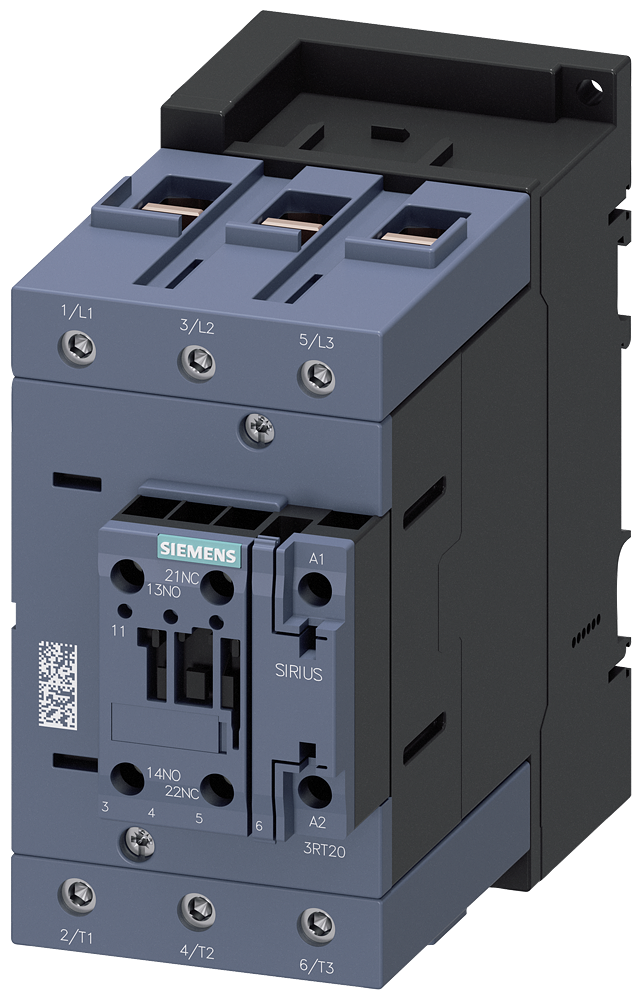

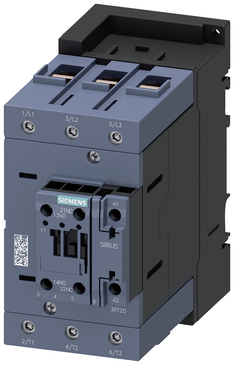

3RT20461NB300CC0 | CONT..AC3:45KW.1NO+1NC.20-33VAC/DC COM. | Siemens Electrical
CONTACTOR. AC3: 45KW/400V. 1NO+1NC. 20-33VAC/DC. COM.CAP.. 3-POLE. 3NO. SIZE: S3. SCREW TERMINALS. INTEGRATED VARISTOR
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT20461NB300CC0
Overview Details for 3RT20461NB300CC0
Specifications
Item Number | 3RT20461NB300CC0 |
Brand | Siemens Electrical |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 1 |
Number of auxiliary contacts as normally open contact | 1 |
Number of main contacts as normally open contact | 3 |
Rated control supply voltage Us at AC 50HZ | 20 V |
Rated control supply voltage Us at AC 60HZ | 20 V |
Rated control supply voltage Us at DC | 20 V |
Rated operation current Ie at AC-1; 400 V | 130 A |
Rated operation current Ie at AC-3; 400 V | 95 A |
Rated operation current Ie at AC-4; 400 V | 80 A |
Rated operation power at AC-3; 400 V | 45 kW |
Rated operation power NEMA | 55.16240625 kW |
Type of electrical connection of main circuit | Screw connection |
Voltage type for actuating | AC/DC |
Weight | 3.97800 LB |
