Documents: 3RT20461KB401AA0

Datasheet

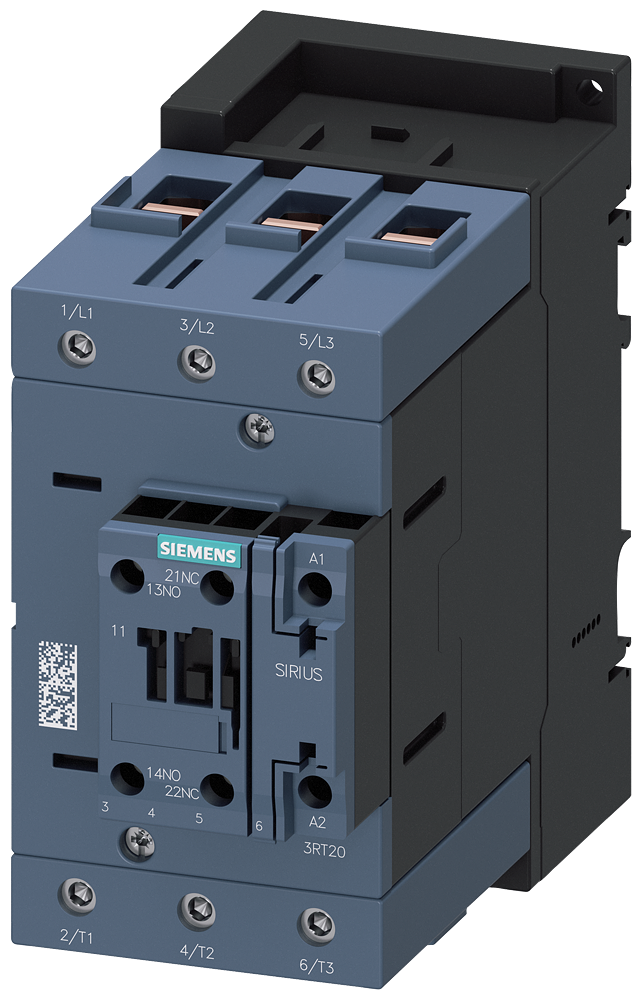

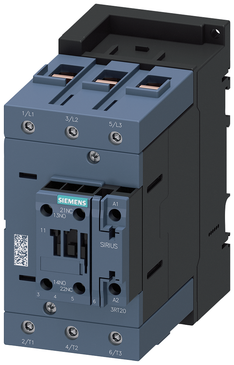

3RT20461KB401AA0 | COUPL. CONT.. AC3:45KW. 1NO+1NC. 24 V DC | Siemens Electrical

Coupl. cont..AC3 45KW/400v. 1NO+1NC. 24 V DC. 3-pole. 3NO. size s3. screw terminals. 1NO+1NC. varistor integr.. vertical mount. pos.. suitable for 2a plc-outputs

Brand: Siemens ElectricalSKU: 3RT20461KB401AA0

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT20461KB401AA0

Jump to: Overview & Specifications Reviews

Overview Details for 3RT20461KB401AA0

Specifications

Item Number	3RT20461KB401AA0
Brand	Siemens Electrical
Height	6.650 IN
Length	6.3 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	130 A
Rated operation current Ie at AC-3; 400 V	95 A
Rated operation current Ie at AC-4; 400 V	80 A
Rated operation power at AC-3; 400 V	45 kW
Rated operation power NEMA	55.16240625 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Weight	4.070 LB
Width	3.150 IN
