3RT20461KB40 | COUPL. CONTACT AC-3 45KW 1NO+1NC | 24 V DC | Siemens Electrical

Coupl. cont..AC3 45KW/400v. 1NO+1NC. 24 V DC. 3-pole. 3NO. size s3. screw terminals. integrated varistor. suitable for 2a plc-outputs

Brand: Siemens ElectricalSKU: 3RT20461KB40

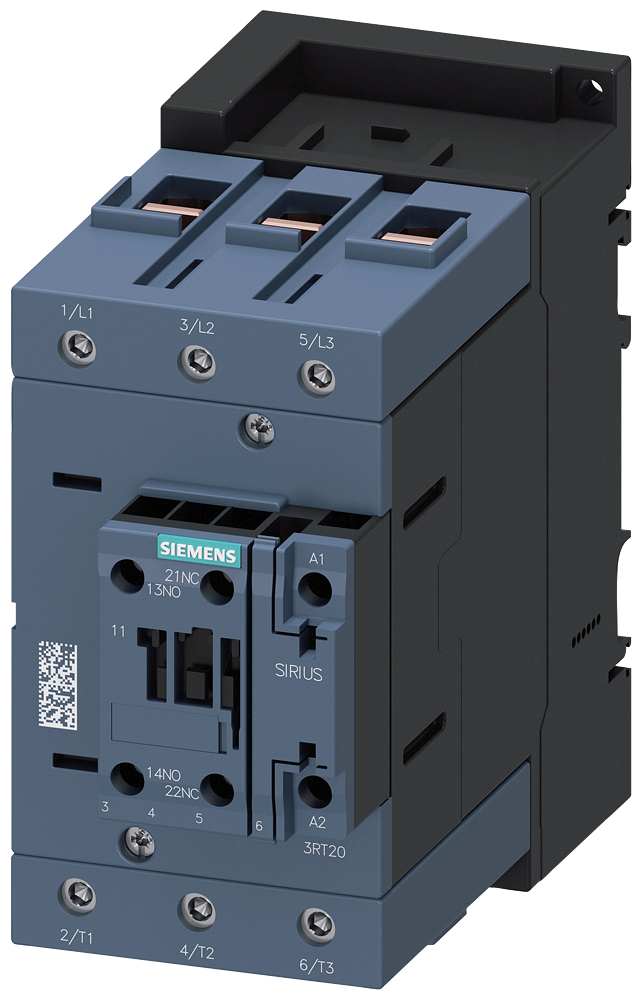

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20461KB40

Item Number	3RT20461KB40
Brand	Siemens Electrical
Height	6.600 IN
Length	6.3 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	130 A
Rated operation current Ie at AC-3; 400 V	95 A
Rated operation current Ie at AC-4; 400 V	80 A
Rated operation power at AC-3; 400 V	45 kW
Rated operation power NEMA	55.16240625 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Weight	3.870 LB
Width	3.200 IN
