3RT20461AK643MA0 | CONTACTOR.AC3:45KW.110VAC 50HZ/120V 60HZ | Siemens Electrical

Contactor. AC3 45KW/400v. 2NO+2NC. 110VAC 50HZ/120v 60HZ. 3-pole. 3NO. size s3. screw terminals. perm. mount. aux. switch

Brand: Siemens ElectricalSKU: 3RT20461AK643MA0

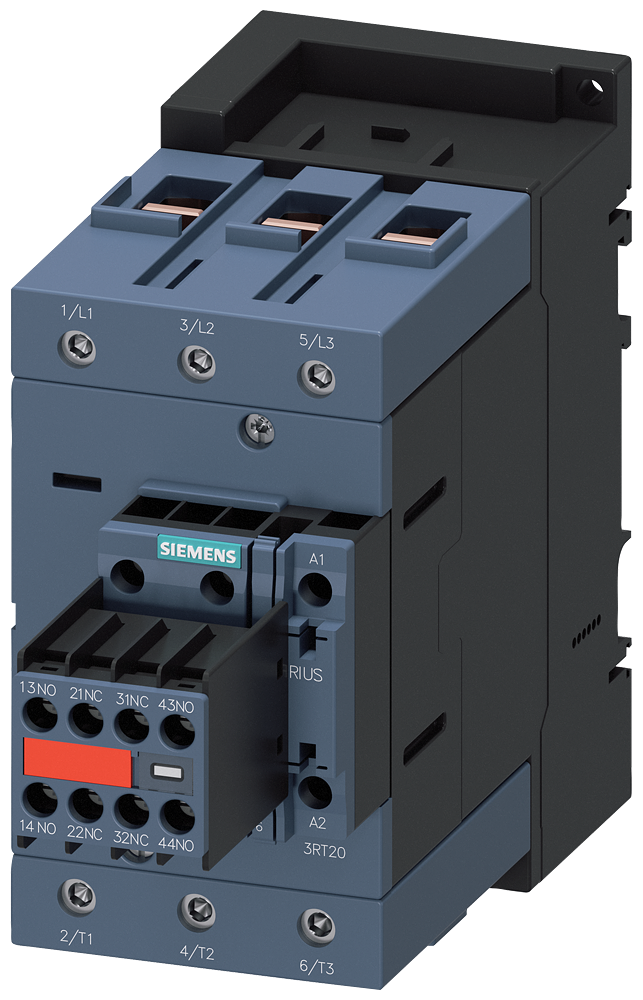

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20461AK643MA0

Item Number	3RT20461AK643MA0
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	110 V
Rated control supply voltage Us at AC 60HZ	120 V
Rated operation current Ie at AC-1; 400 V	130 A
Rated operation current Ie at AC-3; 400 V	95 A
Rated operation current Ie at AC-4; 400 V	80 A
Rated operation power at AC-3; 400 V	45 kW
Rated operation power NEMA	55.16240625 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	3.94900 LB
