Documents: 3RT20461AK64

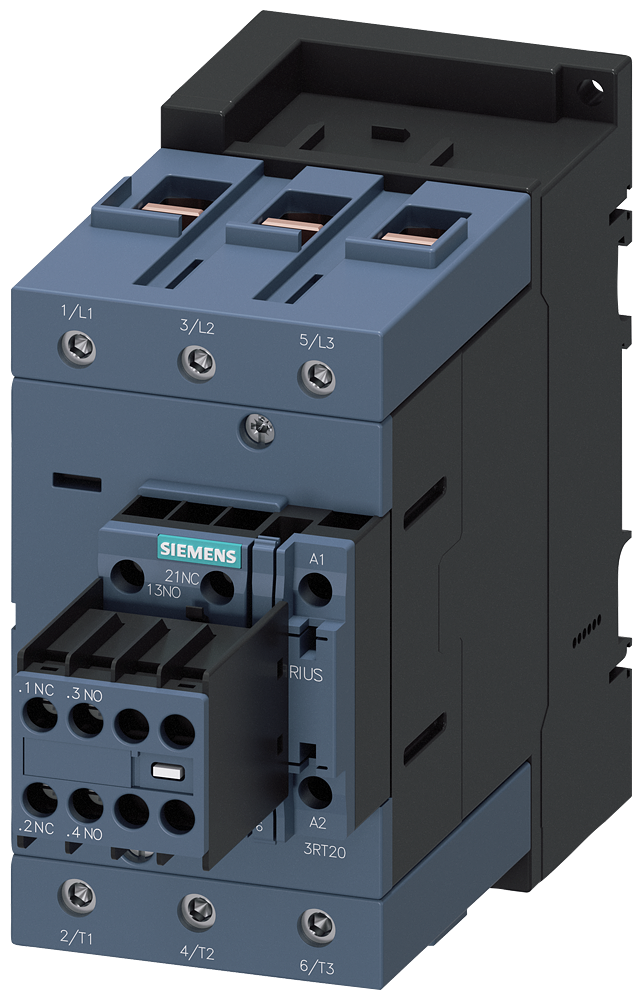

3RT20461AK64 | CONTACTOR.AC3:45KW.110VAC 50HZ/120V 60HZ | Siemens Electrical
power contactor. AC-3 95 A. 45 kW / 400 V 2 NO + 2 NC. 110 V AC. 50 Hz Hz 120 V/60 Hz 3-pole. 3 NO. Size S3 screw terminal
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT20461AK64
Overview Details for 3RT20461AK64
Specifications
Item Number | 3RT20461AK64 |
Brand | Siemens Electrical |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 2 |
Number of auxiliary contacts as normally open contact | 2 |
Number of main contacts as normally open contact | 3 |
Rated control supply voltage Us at AC 50HZ | 110 V |
Rated control supply voltage Us at AC 60HZ | 120 V |
Rated operation current Ie at AC-1; 400 V | 130 A |
Rated operation current Ie at AC-3; 400 V | 95 A |
Rated operation current Ie at AC-4; 400 V | 80 A |
Rated operation power at AC-3; 400 V | 45 kW |
Rated operation power NEMA | 55.16240625 kW |
Type of electrical connection of main circuit | Screw connection |
Voltage type for actuating | AC |
Weight | 3.83700 LB |
