Documents: 3RT20461AC20
3RT20461AC20 | CONTACTOR.AC3:45KW.1NO+1NC.24VAC 50/60HZ | Siemens Electrical
Contactor. AC3 45KW/400v. 1NO+1NC. 24VAC 50/60HZ. 3-pole. 3NO. size s3. screw terminals

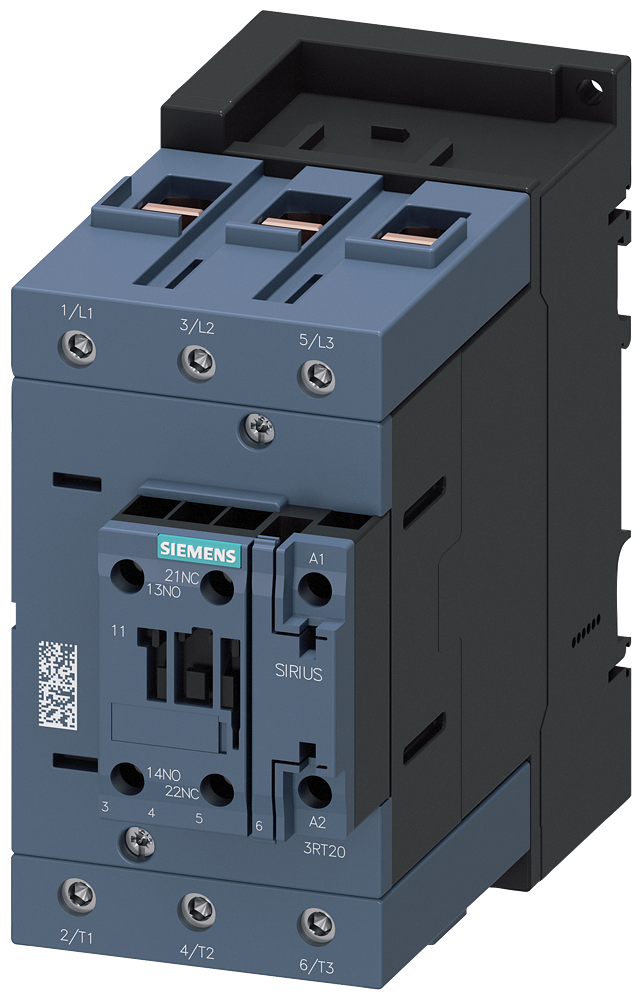

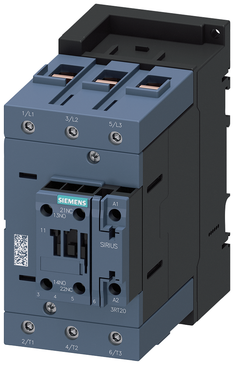

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT20461AC20
Overview Details for 3RT20461AC20
Specifications
Item Number | 3RT20461AC20 |
Brand | Siemens Electrical |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 1 |
Number of auxiliary contacts as normally open contact | 1 |
Number of main contacts as normally open contact | 3 |
Rated control supply voltage Us at AC 50HZ | 24 V |
Rated control supply voltage Us at AC 60HZ | 24 V |
Rated operation current Ie at AC-1; 400 V | 130 A |
Rated operation current Ie at AC-3; 400 V | 95 A |
Rated operation current Ie at AC-4; 400 V | 80 A |
Rated operation power at AC-3; 400 V | 45 kW |
Rated operation power NEMA | 55.16240625 kW |
Type of electrical connection of main circuit | Screw connection |
Voltage type for actuating | AC |
Weight | 3.78400 LB |
