3RT20451AL26 | CONT..AC3:37KW.2NO+2NC.230VAC 50/60HZ | Siemens Electrical

CONTACTOR. AC3: 37KW/400V. 2NO+2NC. 230VAC 50/60HZ. 3-POLE. 3NO. SIZE: S3. SCREW TERMINALS

Brand: Siemens ElectricalSKU: 3RT20451AL26

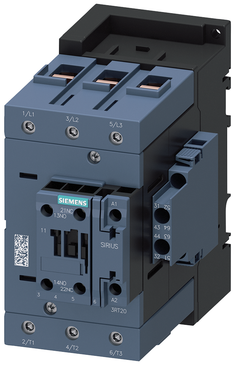

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20451AL26

Item Number	3RT20451AL26
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	230 V
Rated control supply voltage Us at AC 60HZ	230 V
Rated operation current Ie at AC-1; 400 V	125 A
Rated operation current Ie at AC-3; 400 V	80 A
Rated operation current Ie at AC-4; 400 V	66 A
Rated operation power at AC-3; 400 V	37 kW
Rated operation power NEMA	44.129924999 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	3.82800 LB
