Documents: 3RT20451AK643MA0
3RT20451AK643MA0 | CONTACTOR.AC3:37KW.110VAC 50HZ/120V 60HZ | Siemens Electrical
CONTACTOR. AC3: 37KW/400V. 3-POLE. 2NO+2NC. AC 110 V/50 120 V/60 Hz. 3NO. SIZE S3. SCREW TERMINALS. PERM. MOUNT. AUX. SWITCH 120

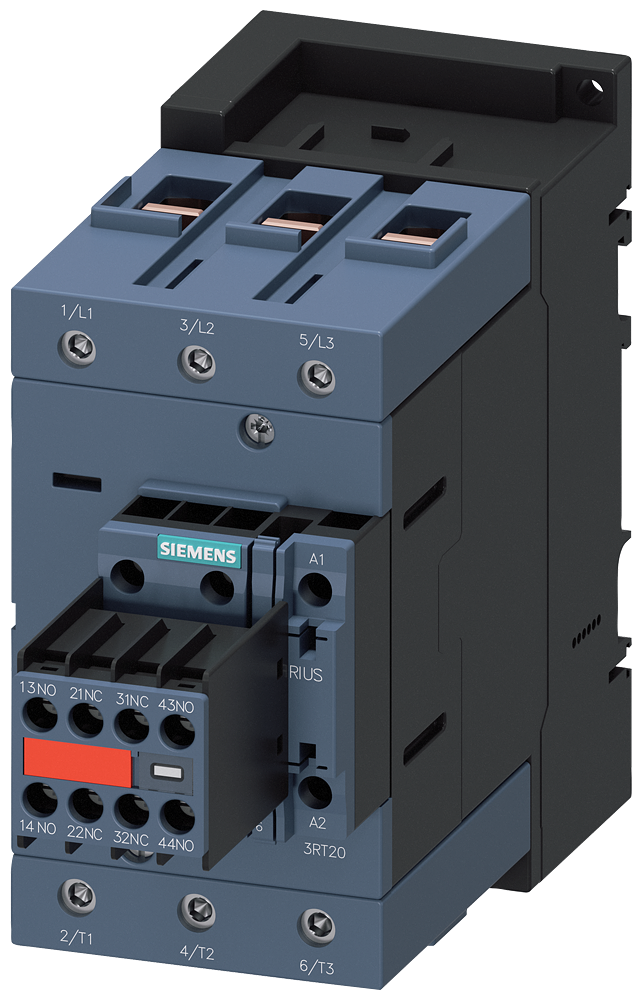

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT20451AK643MA0
Overview Details for 3RT20451AK643MA0
Specifications
Item Number | 3RT20451AK643MA0 |
Brand | Siemens Electrical |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 2 |
Number of auxiliary contacts as normally open contact | 2 |
Number of main contacts as normally open contact | 3 |
Rated control supply voltage Us at AC 50HZ | 110 V |
Rated control supply voltage Us at AC 60HZ | 120 V |
Rated operation current Ie at AC-1; 400 V | 125 A |
Rated operation current Ie at AC-3; 400 V | 80 A |
Rated operation current Ie at AC-4; 400 V | 66 A |
Rated operation power at AC-3; 400 V | 37 kW |
Rated operation power NEMA | 44.129924999 kW |
Type of electrical connection of main circuit | Screw connection |
Voltage type for actuating | AC |
Weight | 3.85600 LB |
