3RT20383SF30 | Contactor. AC-3. 80 A/400 V/60 | Siemens Electrical

contactor. AC-3. 80 A/400 V/60 Â°C S2. 3-pole. 83-150 V AC/DC. F-PLC-IN. with varistor. 1 NC. spring-loaded terminal

Brand: Siemens ElectricalSKU: 3RT20383SF30

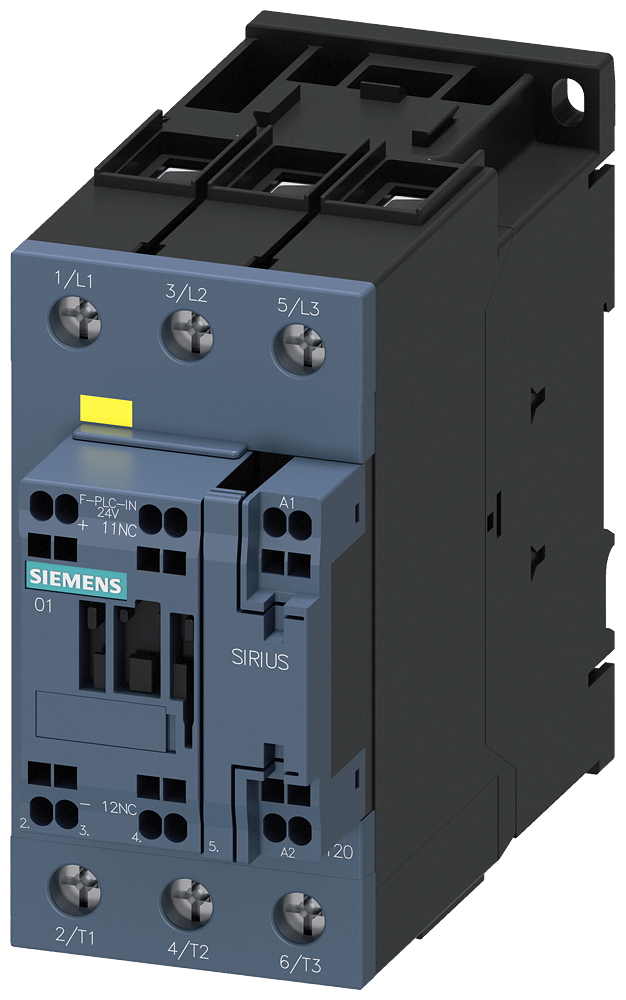

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20383SF30

Item Number	3RT20383SF30
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	0
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	83 V
Rated control supply voltage Us at AC 60HZ	83 V
Rated control supply voltage Us at DC	83 V
Rated operation current Ie at AC-1; 400 V	90 A
Rated operation current Ie at AC-3; 400 V	80 A
Rated operation current Ie at AC-4; 400 V	55 A
Rated operation power at AC-3; 400 V	37 kW
Rated operation power NEMA	36.7749375 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC/DC
Weight	2.51400 LB
