Documents: 3RT20383SB30
3RT20383SB30 | Contactor. AC-3. 80 A/400 V/60 | Siemens Electrical
contactor. AC-3. 80 A/400 V/60 °C S2. 3-pole. 21-33 V AC/DC. F-PLC-IN. with varistor. 1 NC. spring-loaded terminal

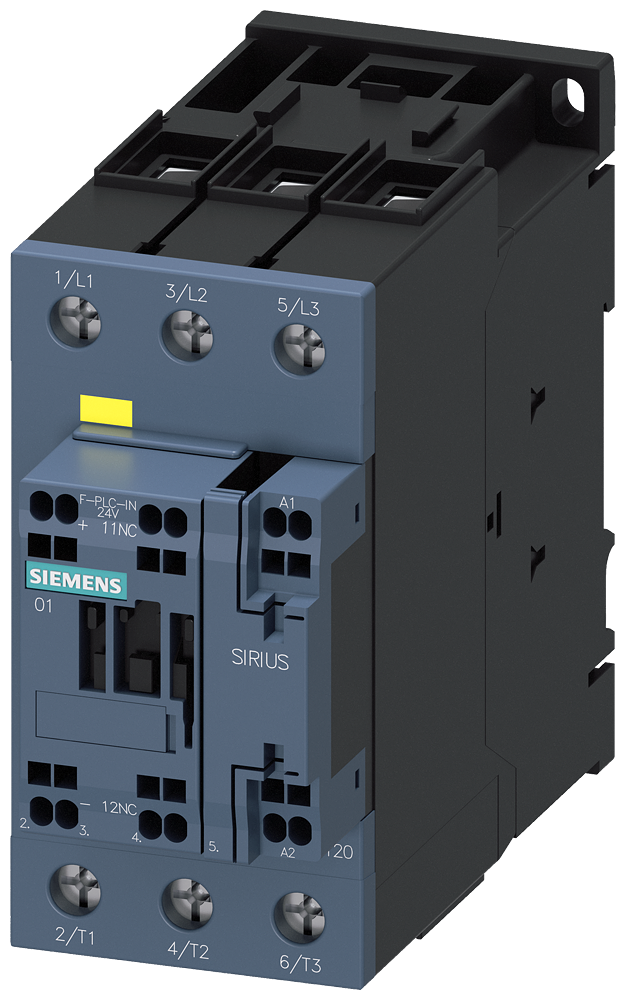

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT20383SB30
Overview Details for 3RT20383SB30
Specifications
Item Number | 3RT20383SB30 |
Brand | Siemens Electrical |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 1 |
Number of auxiliary contacts as normally open contact | 0 |
Number of main contacts as normally open contact | 3 |
Rated control supply voltage Us at AC 50HZ | 21 V |
Rated control supply voltage Us at AC 60HZ | 21 V |
Rated control supply voltage Us at DC | 21 V |
Rated operation current Ie at AC-1; 400 V | 90 A |
Rated operation current Ie at AC-3; 400 V | 80 A |
Rated operation current Ie at AC-4; 400 V | 55 A |
Rated operation power at AC-3; 400 V | 37 kW |
Rated operation power NEMA | 36.7749375 kW |
Type of electrical connection of main circuit | Screw connection |
Voltage type for actuating | AC/DC |
Weight | 2.51400 LB |
