Documents: 3RT20381AF04
3RT20381AF04 | CONTACTOR S2 65A 110VAC SCREW 2NO/2NC | Siemens Electrical
CONTACTOR,AC3:37KW/400V, 2NO+2NC, 110V AC 50HZ, 3-POLE, SIZE S2, SCREW TERMINAL

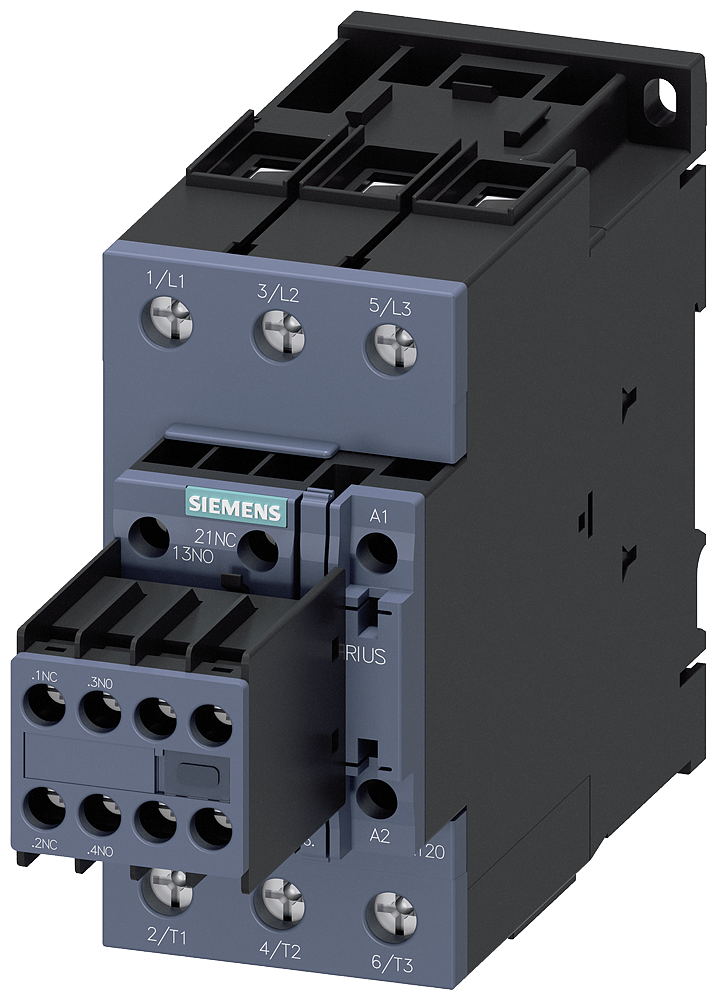

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT20381AF04
Overview Details for 3RT20381AF04
Specifications
Item Number | 3RT20381AF04 |
Brand | Siemens Electrical |
Height | 3.150 IN |
Length | 7.36300 IN |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 2 |
Number of auxiliary contacts as normally open contact | 2 |
Number of main contacts as normally open contact | 3 |
Rated control supply voltage Us at AC 50HZ | 110 V |
Rated operation current Ie at AC-1; 400 V | 90 A |
Rated operation current Ie at AC-3; 400 V | 80 A |
Rated operation current Ie at AC-4; 400 V | 55 A |
Rated operation power at AC-3; 400 V | 37 kW |
Rated operation power NEMA | 36.7749375 kW |
Type of electrical connection of main circuit | Screw connection |
Voltage type for actuating | AC |
Weight | 2.37200 LB |
Width | 5.15800 IN |
