3RT20373XJ400LA2 | RAIL-CONTACTOR.AC3:30KW 1NO+1NC 72VDC | Siemens Electrical

Traction contactor. AC-3 65 A. 30 kW / 400 V 1 NO + 1 NC 72 V DC. 0.7-1.25* Us with varistor 3-pole. size S2 Spring-type terminals

Brand: Siemens ElectricalSKU: 3RT20373XJ400LA2

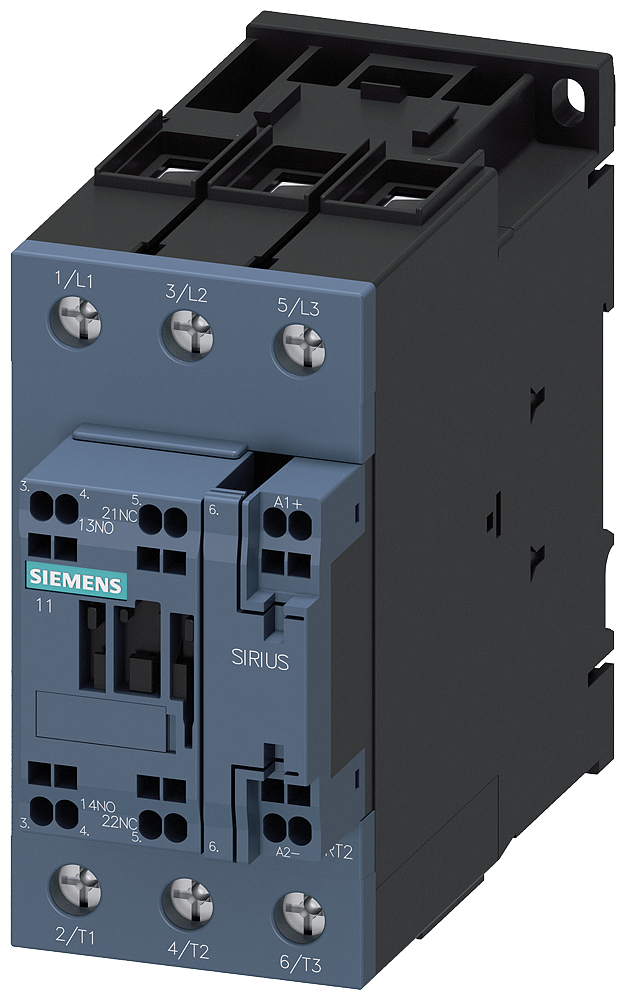

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20373XJ400LA2

Item Number	3RT20373XJ400LA2
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	72 V
Rated operation current Ie at AC-1; 400 V	80 A
Rated operation current Ie at AC-3; 400 V	65 A
Rated operation current Ie at AC-4; 400 V	55 A
Rated operation power at AC-3; 400 V	30 kW
Rated operation power at AC-4; 400 V	30 kW
Rated operation power NEMA	36.7749375 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Weight	2.540 LB
