Documents: 3RT20373NB300CC0
3RT20373NB300CC0 | CONTACTOR COMM S2 65A 20-33VUC 1NO/1NC | Siemens Electrical
CONTACTOR,AC3:30KW/400V, 1NO+1NC, 20-33VAC/DC, COM.CAP. WITH VARISTOR, 3-POLE, SIZE S2, SPRING-TYPE TERMINAL

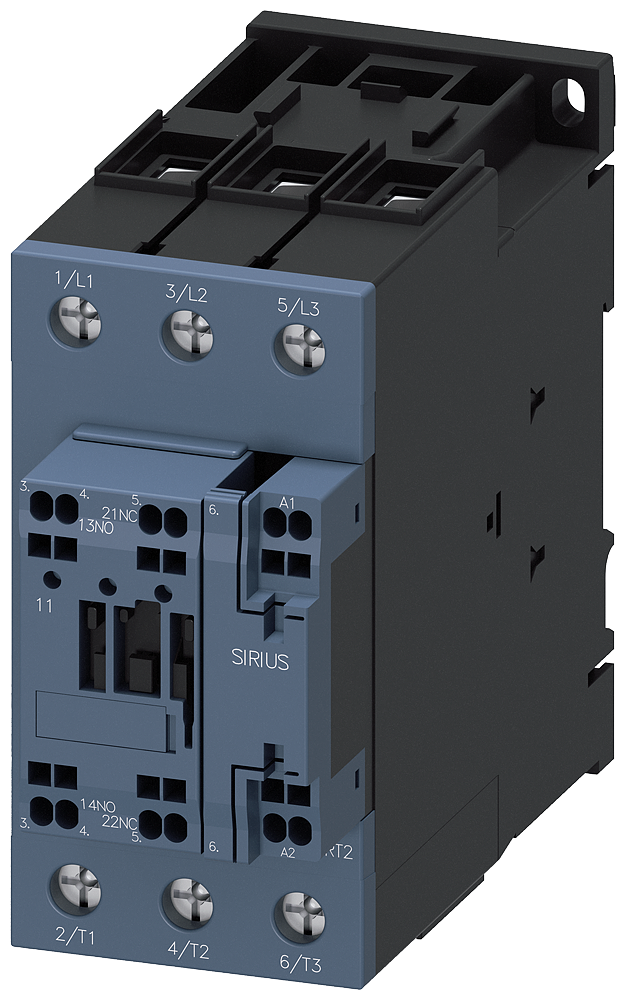

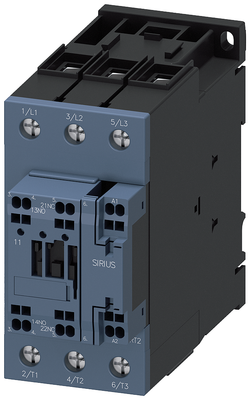

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT20373NB300CC0
Overview Details for 3RT20373NB300CC0
Specifications
Item Number | 3RT20373NB300CC0 |
Brand | Siemens Electrical |
Height | 5.59100 IN |
Length | 4.82300 IN |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 1 |
Number of auxiliary contacts as normally open contact | 1 |
Number of main contacts as normally open contact | 3 |
Rated control supply voltage Us at AC 50HZ | 20 V |
Rated control supply voltage Us at AC 60HZ | 20 V |
Rated control supply voltage Us at DC | 20 V |
Rated operation current Ie at AC-1; 400 V | 80 A |
Rated operation current Ie at AC-3; 400 V | 65 A |
Rated operation current Ie at AC-4; 400 V | 55 A |
Rated operation power at AC-3; 400 V | 30 kW |
Rated operation power NEMA | 36.7749375 kW |
Type of electrical connection of main circuit | Screw connection |
Voltage type for actuating | AC/DC |
Weight | 2.47100 LB |
Width | 2.44100 IN |
