Documents: 3RT20373KB40

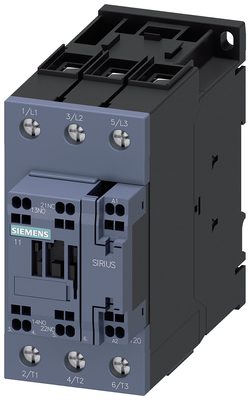

3RT20373KB40 | CONTACTOR S2 65A 24VDC SPRING 1NO/1NC | Siemens Electrical
Coupling cont.,AC3 30KW/400V, 1NO+1NC, 24V DC, with varistor, spring-type terminal
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT20373KB40
Overview Details for 3RT20373KB40
Specifications
Item Number | 3RT20373KB40 |
Brand | Siemens Electrical |
Height | 5.670 IN |
Length | 4.84300 IN |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 1 |
Number of auxiliary contacts as normally open contact | 1 |
Number of main contacts as normally open contact | 3 |
Rated control supply voltage Us at DC | 24 V |
Rated operation current Ie at AC-1; 400 V | 80 A |
Rated operation current Ie at AC-3; 400 V | 65 A |
Rated operation current Ie at AC-4; 400 V | 55 A |
Rated operation power at AC-3; 400 V | 30 kW |
Rated operation power NEMA | 36.7749375 kW |
Type of electrical connection of main circuit | Screw connection |
Voltage type for actuating | DC |
Weight | 2.47100 LB |
Width | 2.560 IN |
