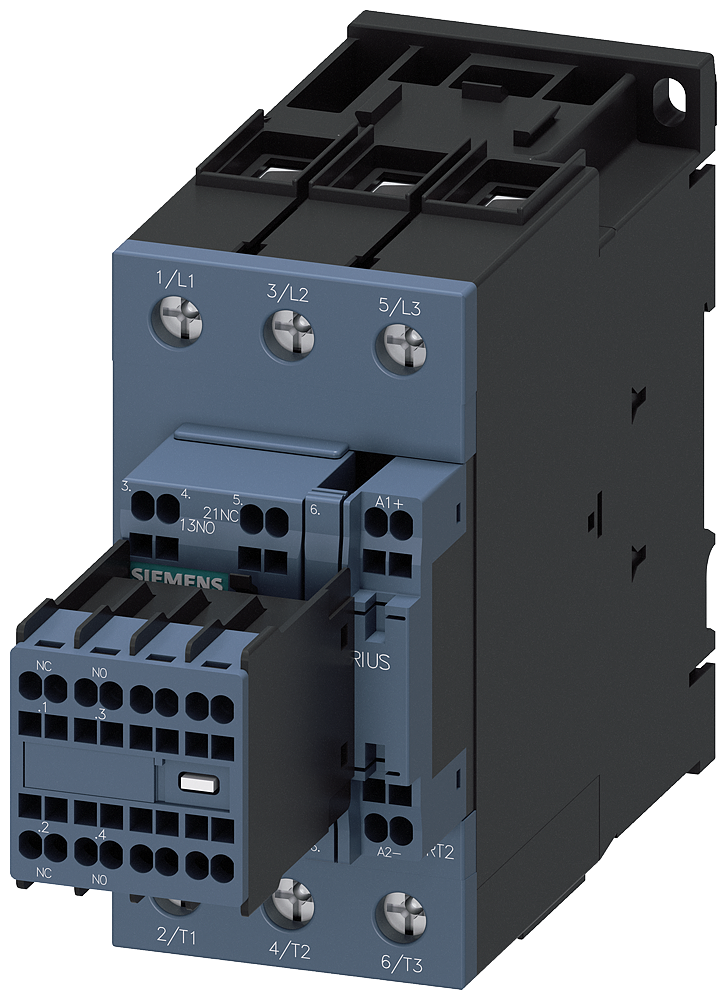

3RT20363XJ440LA2 | RAIL-CONTACTOR.AC3:22KW 2NO+2NC 72VDC | Siemens Electrical

Traction contactor, AC-3 50 A, 22 kW / 400 V 2 NO + 2 NC 72 V DC, 0.7-1.25* US, with varistor, 3-pole, Size S2, Spring-type terminal

Brand: Siemens ElectricalSKU: 3RT20363XJ440LA2

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20363XJ440LA2

Item Number	3RT20363XJ440LA2
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	72 V
Rated operation current Ie at AC-1; 400 V	70 A
Rated operation current Ie at AC-3; 400 V	51 A
Rated operation current Ie at AC-4; 400 V	41 A
Rated operation power at AC-3; 400 V	22 kW
Rated operation power at AC-4; 400 V	22 kW
Rated operation power NEMA	29.419949999 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Weight	2.65900 LB
