Documents: 3RT20363XF400LA2
3RT20363XF400LA2 | CONTACTOR S2 50A 110VDC VAR SPRG 1NO/1NC | Siemens Electrical
RAIL-CONTACTOR, AC-3, 22KW/400V, 1NO+1NC, 110VDC, 0.7...1.25*US, WITH VARISTOR, 3-POLE, SIZE S2, SPRING-TYPE TERMINAL

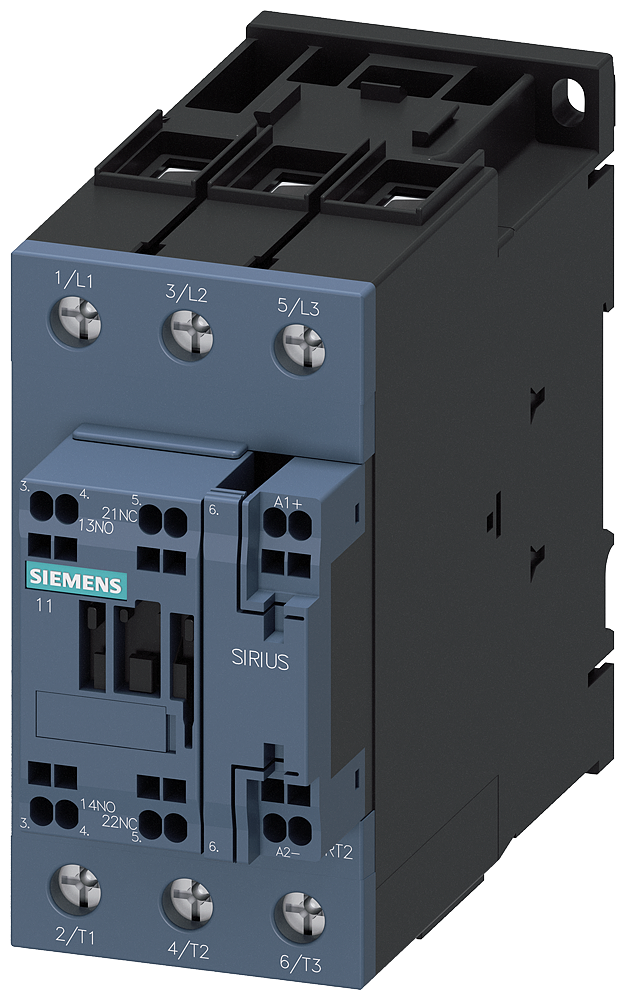

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT20363XF400LA2
Overview Details for 3RT20363XF400LA2
Specifications
Item Number | 3RT20363XF400LA2 |
Brand | Siemens Electrical |
Height | 5.59100 IN |
Length | 4.82300 IN |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 1 |
Number of auxiliary contacts as normally open contact | 1 |
Number of main contacts as normally open contact | 3 |
Rated control supply voltage Us at DC | 110 V |
Rated operation current Ie at AC-1; 400 V | 70 A |
Rated operation current Ie at AC-3; 400 V | 51 A |
Rated operation current Ie at AC-4; 400 V | 41 A |
Rated operation power at AC-3; 400 V | 22 kW |
Rated operation power at AC-4; 400 V | 22 kW |
Rated operation power NEMA | 29.419949999 kW |
Type of electrical connection of main circuit | Screw connection |
Voltage type for actuating | DC |
Weight | 2.47100 LB |
Width | 2.44100 IN |
