3RT20363NB343MA0 | CONTACTOR S2 50A 20-33VUC SPRING 2NO/2NC | Siemens Electrical

CONTACTOR,AC3:22KW/400V, 2NO+2NC, 20-33V AC/DC, WITH VARISTOR, 3-POLE, SIZE S2, SPRING-TYPE TERMINAL, AUXILIARY CONTACT INSEPARABLE

Brand: Siemens ElectricalSKU: 3RT20363NB343MA0

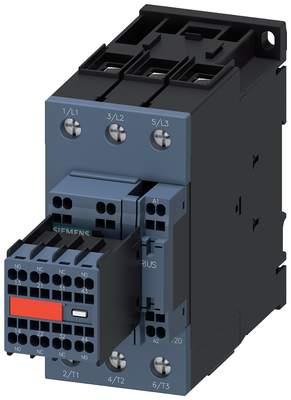

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20363NB343MA0

Item Number	3RT20363NB343MA0
Brand	Siemens Electrical
Height	7.560 IN
Length	5.15800 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	20 V
Rated control supply voltage Us at AC 60HZ	20 V
Rated control supply voltage Us at DC	20 V
Rated operation current Ie at AC-1; 400 V	70 A
Rated operation current Ie at AC-3; 400 V	51 A
Rated operation current Ie at AC-4; 400 V	41 A
Rated operation power at AC-3; 400 V	22 kW
Rated operation power NEMA	29.419949999 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC/DC
Weight	2.67900 LB
Width	3.07100 IN
