Documents: 3RT20363AL16
3RT20363AL16 | CONTACTOR S2 50A 230VAC LAT AUX 2NO/2NC | Siemens Electrical
CONTACTOR,AC3:22KW/400V, 2NO+2NC, 230V AC 60HZ, 3-POLE, SIZE S2, SPRING-TYPE TERMINAL LATERAL AUXILIARY CONTACT BLOCK

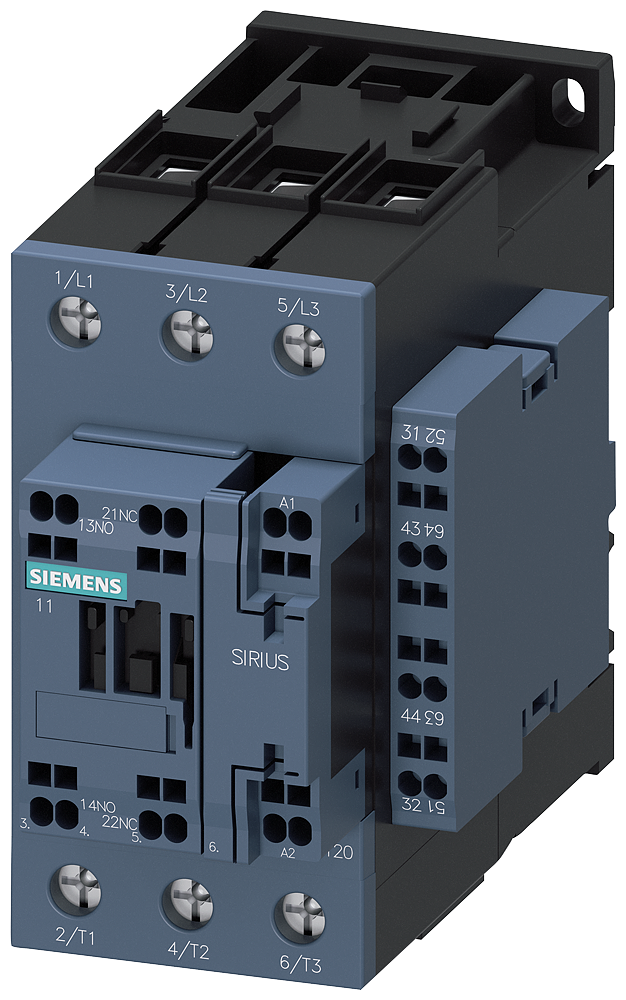

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT20363AL16
Overview Details for 3RT20363AL16
Specifications
Item Number | 3RT20363AL16 |
Brand | Siemens Electrical |
Height | 5.74900 IN |
Length | 4.84300 IN |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 2 |
Number of auxiliary contacts as normally open contact | 2 |
Number of main contacts as normally open contact | 3 |
Rated control supply voltage Us at AC 60HZ | 230 V |
Rated operation current Ie at AC-1; 400 V | 70 A |
Rated operation current Ie at AC-3; 400 V | 51 A |
Rated operation current Ie at AC-4; 400 V | 41 A |
Rated operation power at AC-3; 400 V | 22 kW |
Rated operation power NEMA | 29.419949999 kW |
Type of electrical connection of main circuit | Screw connection |
Voltage type for actuating | AC |
Weight | 2.240 LB |
Width | 3.26800 IN |
