3RT20363AB00 | CONTACTOR S2 50A 24VAC SPRING 1NO/1NC | Siemens Electrical

CONTACTOR,AC3:22KW/400V, 1NO+1NC, 24V AC 50HZ, 3-POLE, SIZE S2, SPRING-TYPE TERMINAL

Brand: Siemens ElectricalSKU: 3RT20363AB00

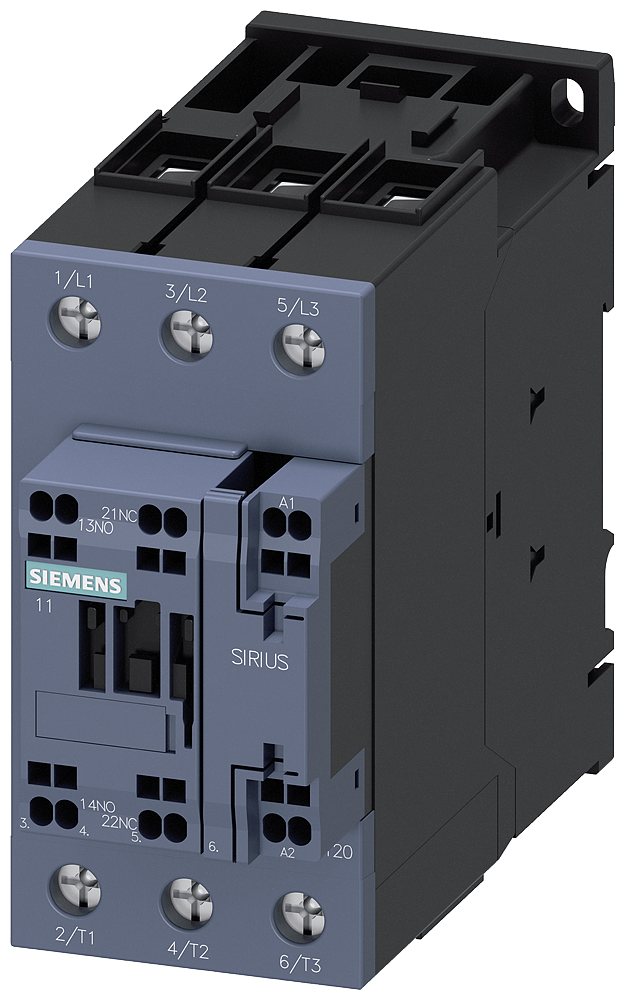

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20363AB00

Item Number	3RT20363AB00
Brand	Siemens Electrical
Height	5.59100 IN
Length	4.82300 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	24 V
Rated operation current Ie at AC-1; 400 V	70 A
Rated operation current Ie at AC-3; 400 V	51 A
Rated operation current Ie at AC-4; 400 V	41 A
Rated operation power at AC-3; 400 V	22 kW
Rated operation power NEMA	29.419949999 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	2.150 LB
Width	2.44100 IN
