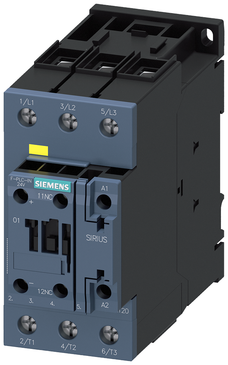

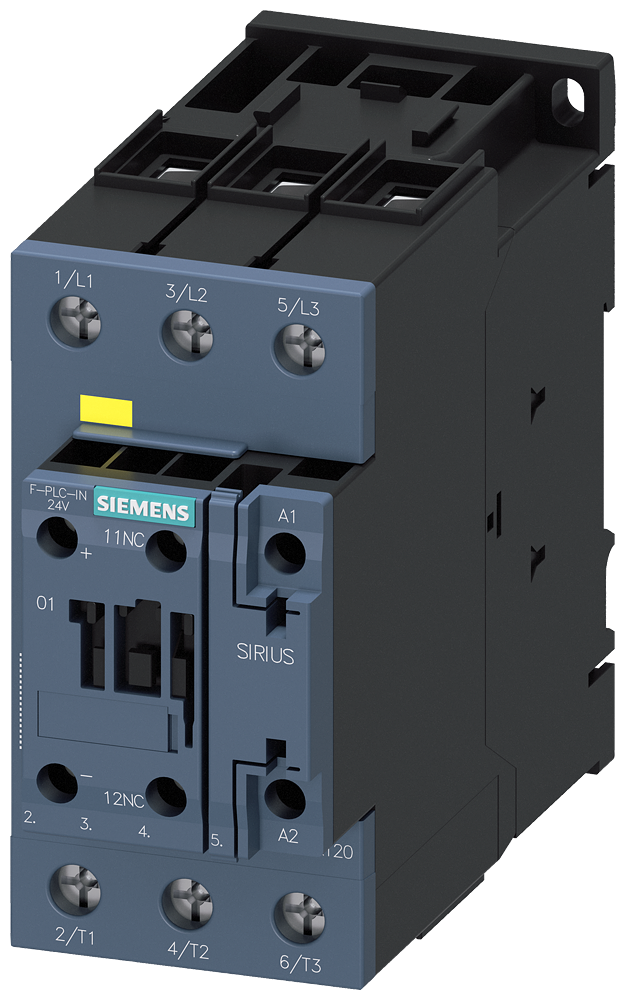

3RT20361SF30 | Contactor. AC-3. 50 A/400 V/60 | Siemens Electrical

contactor. AC-3. 50 A/400 V/60 Â°C S2. 3-pole. 83-150 V AC/DC. F-PLC-IN. with varistor. 1 NC. screw terminal

Brand: Siemens ElectricalSKU: 3RT20361SF30

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20361SF30

Item Number	3RT20361SF30
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	0
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	83 V
Rated control supply voltage Us at AC 60HZ	83 V
Rated control supply voltage Us at DC	83 V
Rated operation current Ie at AC-1; 400 V	70 A
Rated operation current Ie at AC-3; 400 V	51 A
Rated operation current Ie at AC-4; 400 V	41 A
Rated operation power at AC-3; 400 V	22 kW
Rated operation power NEMA	29.419949999 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC/DC
Weight	2.49200 LB
