3RT20361NF34 | CONTACTOR S2 50A 83-155VUC SCREW 2NO/2NC | Siemens Electrical

CONTACTOR,AC3:22KW/400V, 2NC+2NO, 84 - 155V AC/DC, WITH VARISTOR, 3-POLE, SIZE S2, SCREW TERMINAL

Brand: Siemens ElectricalSKU: 3RT20361NF34

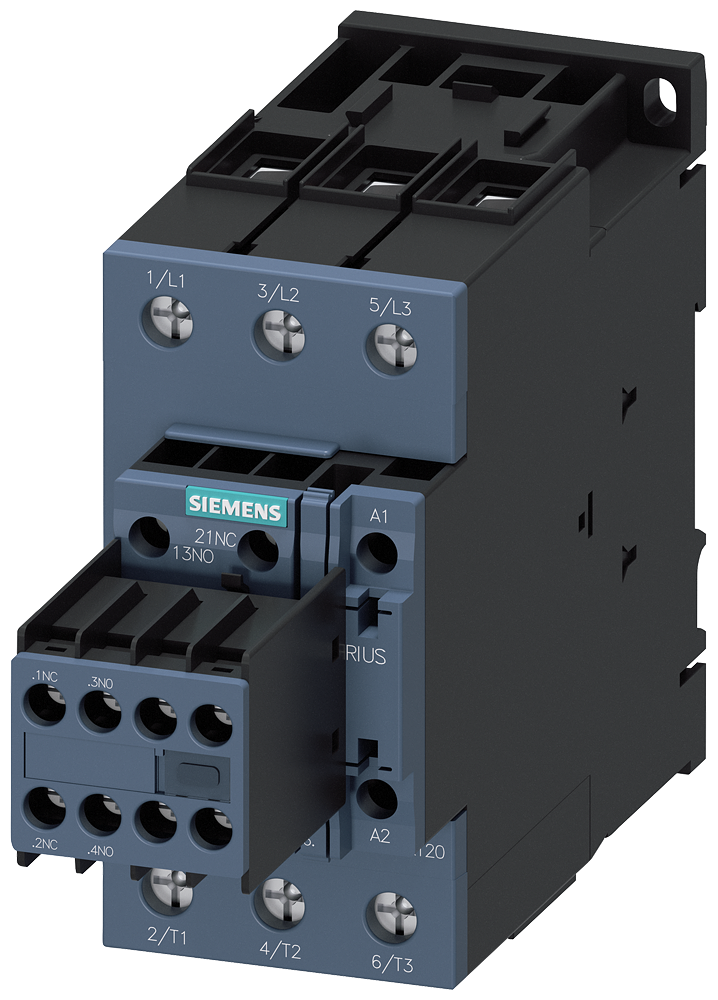

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20361NF34

Item Number	3RT20361NF34
Brand	Siemens Electrical
Height	7.67800 IN
Length	5.23700 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	83 V
Rated control supply voltage Us at AC 60HZ	83 V
Rated control supply voltage Us at DC	83 V
Rated operation current Ie at AC-1; 400 V	70 A
Rated operation current Ie at AC-3; 400 V	51 A
Rated operation current Ie at AC-4; 400 V	41 A
Rated operation power at AC-3; 400 V	22 kW
Rated operation power NEMA	29.419949999 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC/DC
Weight	2.66500 LB
Width	3.07100 IN
