Documents: 3RT20361NE30

Datasheet

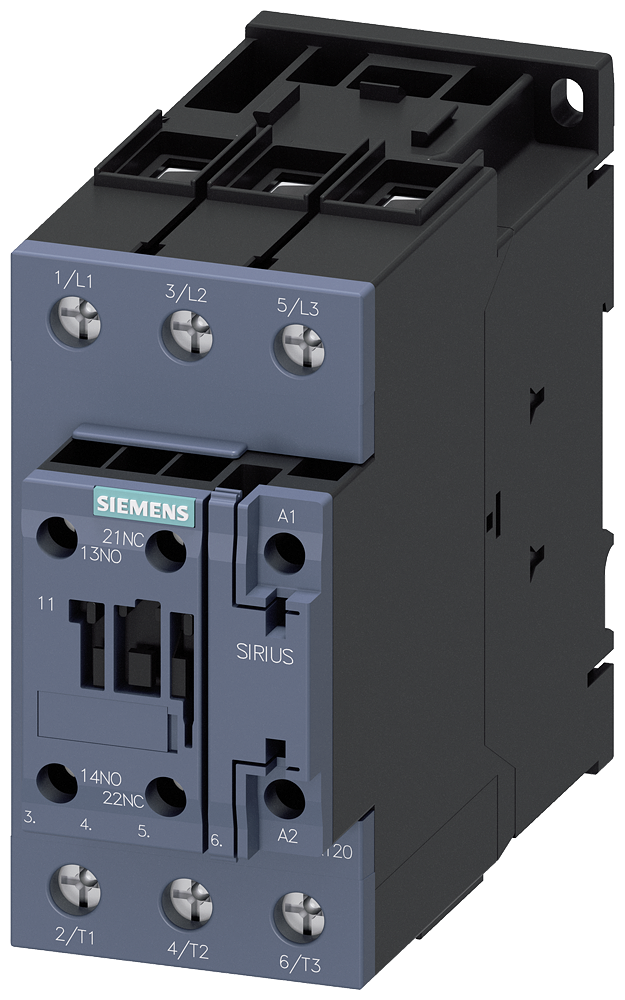

3RT20361NE30 | CONTACTOR | AC3:22KW 1NO+1NC 48 - 80VAC/DC | Siemens Electrical

Power contactor, AC-3e/AC-3, 51 A, 22 kW / 400 V, 3-pole, 48-80 V AC/DC, 50/60 Hz, with integrated varistor, auxiliary contacts: 1 NO + 1 NC, screw terminal

Brand: Siemens ElectricalSKU: 3RT20361NE30

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT20361NE30

Jump to: Overview & Specifications Reviews

Overview Details for 3RT20361NE30

Specifications

Item Number	3RT20361NE30
Brand	Siemens Electrical
Height	2.600 IN
Length	5.710 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	48 V
Rated control supply voltage Us at AC 60HZ	48 V
Rated control supply voltage Us at DC	48 V
Rated operation current Ie at AC-1; 400 V	70 A
Rated operation current Ie at AC-3; 400 V	51 A
Rated operation current Ie at AC-4; 400 V	41 A
Rated operation power at AC-3; 400 V	22 kW
Rated operation power NEMA	29.419949999 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC/DC
Weight	2.47100 LB
Width	4.960 IN
