3RT20361NB300UA0 | CONTACTOR NEMA SZ 2 50A 20-33VUC 1NO/1NC | Siemens Electrical

CONTACTOR, XXHP 460/575V 1NO+1NC, 20-33V AC/DC, 3-POLE, SIZE S2 SCREW TERMINAL NEMA SIZE X

Brand: Siemens ElectricalSKU: 3RT20361NB300UA0

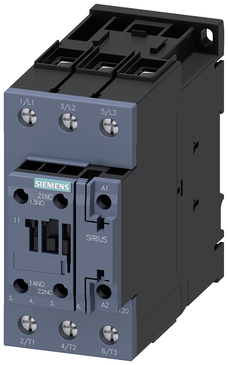

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20361NB300UA0

Item Number	3RT20361NB300UA0
Brand	Siemens Electrical
Height	5.74900 IN
Length	4.84300 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	20 V
Rated control supply voltage Us at AC 60HZ	20 V
Rated control supply voltage Us at DC	20 V
Rated operation current Ie at AC-1; 400 V	70 A
Rated operation current Ie at AC-3; 400 V	51 A
Rated operation current Ie at AC-4; 400 V	41 A
Rated operation power at AC-3; 400 V	22 kW
Rated operation power NEMA	18.38746875 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC/DC
Weight	2.47100 LB
Width	2.44100 IN
