Documents: 3RT20361NB30
3RT20361NB30 | CONTACTOR S2 50A 20-33VUC SCREW 1NO/1NC | Siemens Electrical
Contactor,AC3 22KW/400V, 1NO+1NC, 20-33V AC/DC, with varistor, 3-pole, size s2, screw terminal

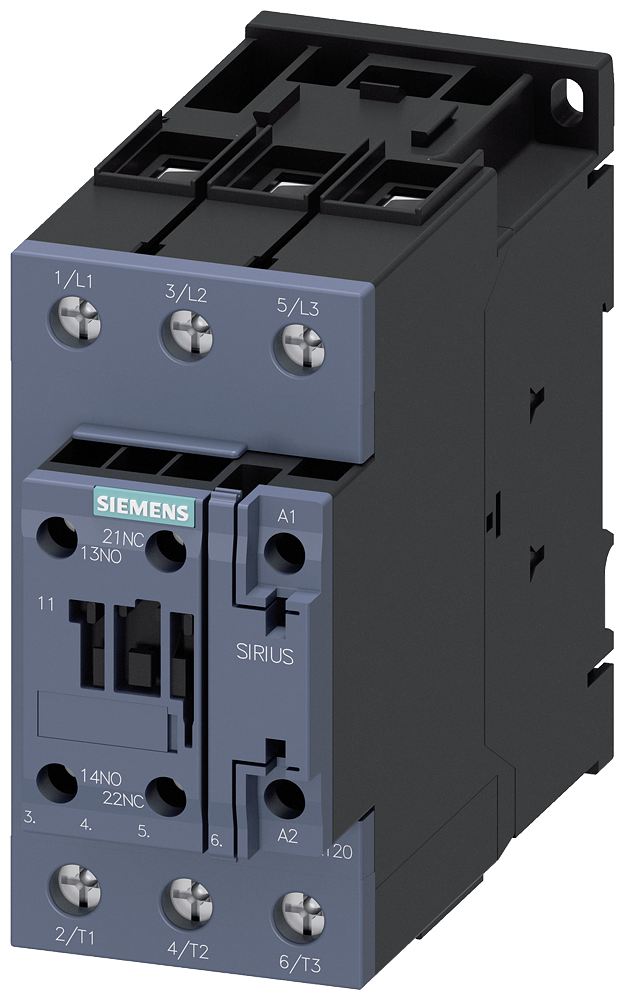

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT20361NB30
Overview Details for 3RT20361NB30
Specifications
Item Number | 3RT20361NB30 |
Brand | Siemens Electrical |
Height | 5.700 IN |
Length | 7 IN |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 1 |
Number of auxiliary contacts as normally open contact | 1 |
Number of main contacts as normally open contact | 3 |
Rated control supply voltage Us at AC 50HZ | 20 V |
Rated control supply voltage Us at AC 60HZ | 20 V |
Rated control supply voltage Us at DC | 20 V |
Rated operation current Ie at AC-1; 400 V | 70 A |
Rated operation current Ie at AC-3; 400 V | 51 A |
Rated operation current Ie at AC-4; 400 V | 41 A |
Rated operation power at AC-3; 400 V | 22 kW |
Rated operation power NEMA | 29.419949999 kW |
Type of electrical connection of main circuit | Screw connection |
Voltage type for actuating | AC/DC |
Weight | 2.470 LB |
Width | 3.5 IN |
