3RT20361KB44 | COUPLING CONT..AC3:22KW 2NO+2NC 24VDC | Siemens Electrical

Coupl. cont.. AC3 22KW/400v. 2NO+2NC. 24 V DC. w. varistor. 3-pole. size s2. screw terminals suitable for 2a plc outputs

Brand: Siemens ElectricalSKU: 3RT20361KB44

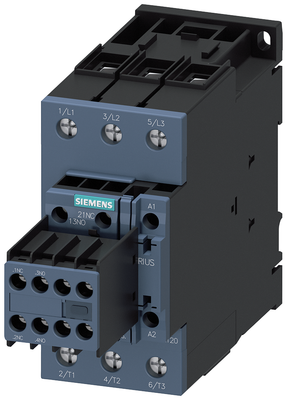

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20361KB44

Item Number	3RT20361KB44
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	70 A
Rated operation current Ie at AC-3; 400 V	51 A
Rated operation current Ie at AC-4; 400 V	41 A
Rated operation power at AC-3; 400 V	22 kW
Rated operation power NEMA	29.419949999 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Weight	2.63700 LB
