3RT20361KB40 | CONTACTOR S2 50A 24VDC SCREW 1NO/1NC | Siemens Electrical

Coupling cont.,AC3 22KW/400V, 1NO+1NC, 24V DC, with varistor, 3-pole, size s2, screw terminal

Brand: Siemens ElectricalSKU: 3RT20361KB40

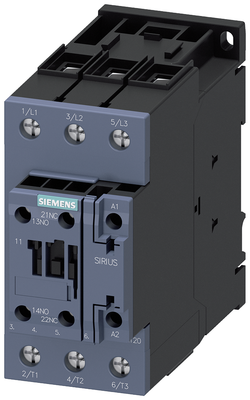

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20361KB40

Item Number	3RT20361KB40
Brand	Siemens Electrical
Height	5.650 IN
Length	4.800 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	70 A
Rated operation current Ie at AC-3; 400 V	51 A
Rated operation current Ie at AC-4; 400 V	41 A
Rated operation power at AC-3; 400 V	22 kW
Rated operation power NEMA	29.419949999 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Weight	2.470 LB
Width	2.450 IN
