3RT20361AP64 | CONTACTOR S2 50A 240VAC SCREW 2NO/2NC | Siemens Electrical

CONTACTOR,AC3:22KW/400V, 1NO+1NC,220VAC 50HZ/240V 60HZ, 3-POLE, SIZE S2, SCREW TERMINAL

Brand: Siemens ElectricalSKU: 3RT20361AP64

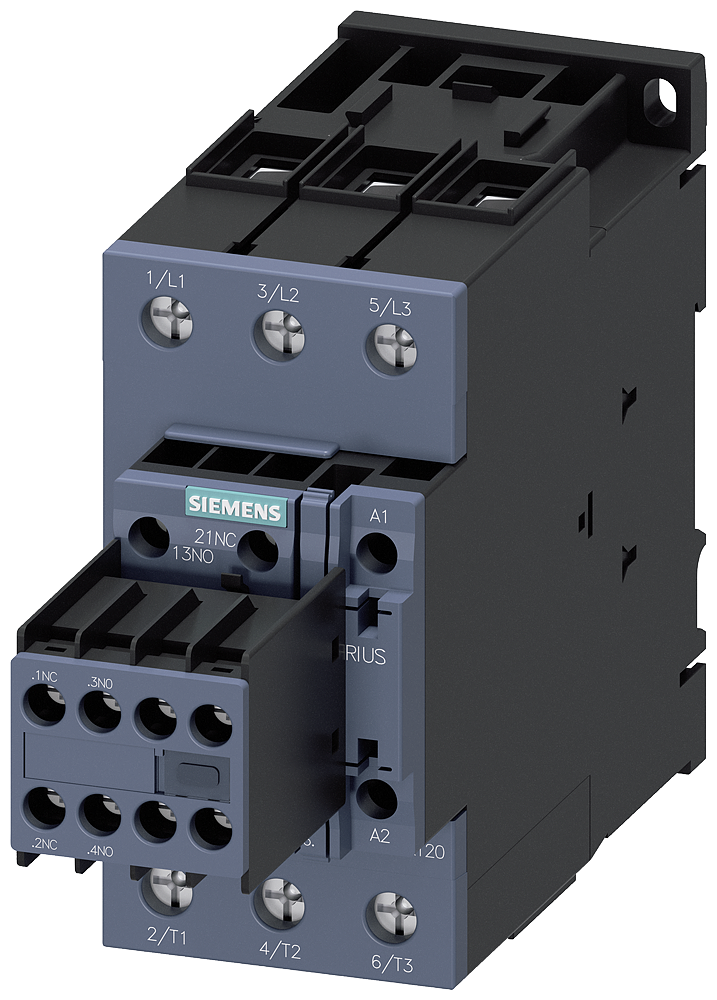

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20361AP64

Item Number	3RT20361AP64
Brand	Siemens Electrical
Height	7.32300 IN
Length	5.17800 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	220 V
Rated control supply voltage Us at AC 60HZ	240 V
Rated operation current Ie at AC-1; 400 V	70 A
Rated operation current Ie at AC-3; 400 V	51 A
Rated operation current Ie at AC-4; 400 V	41 A
Rated operation power at AC-3; 400 V	22 kW
Rated operation power NEMA	29.419949999 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	2.34400 LB
Width	3.03200 IN
