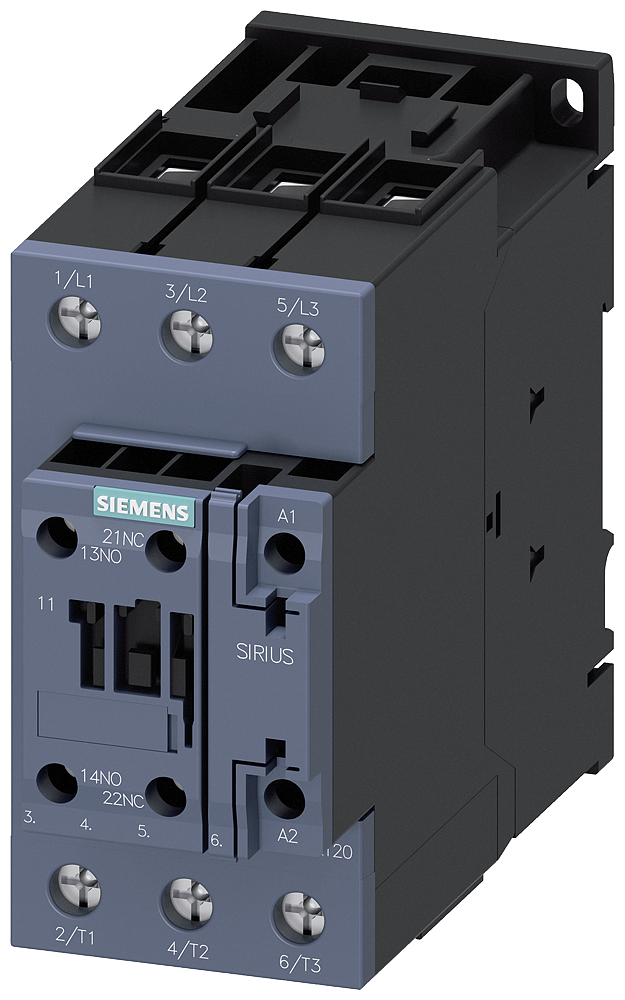

3RT20361AL201AA0 | CONTACTOR S2 50A 230VAC SCW VERT 1NO/1NC | Siemens Electrical

CONTACTOR,AC3:22KW/400V, 1NO+1NC, 230V AC 50/60HZ, 3-POLE, SIZE S2, SCREW TERMINAL UPRIGHT MOUNTING POSITION

Brand: Siemens ElectricalSKU: 3RT20361AL201AA0

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20361AL201AA0

Item Number	3RT20361AL201AA0
Brand	Siemens Electrical
Height	2.560 IN
Length	5.70900 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	230 V
Rated control supply voltage Us at AC 60HZ	230 V
Rated operation current Ie at AC-1; 400 V	70 A
Rated operation current Ie at AC-3; 400 V	51 A
Rated operation current Ie at AC-4; 400 V	41 A
Rated operation power at AC-3; 400 V	22 kW
Rated operation power NEMA	29.419949999 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	2.150 LB
Width	4.76400 IN
