3RT20361AK601AA0 | CONTACTOR S2 50A 120VAC SCW VERT 1NO/1NC | Siemens Electrical

CONTACTOR,AC3:22KW/400V, 1NO+1NC,110VAC 50HZ/120V 60HZ, 3-POLE, SIZE S2, SCREW TERMINAL UPRIGHT MOUNTING POSITION

Brand: Siemens ElectricalSKU: 3RT20361AK601AA0

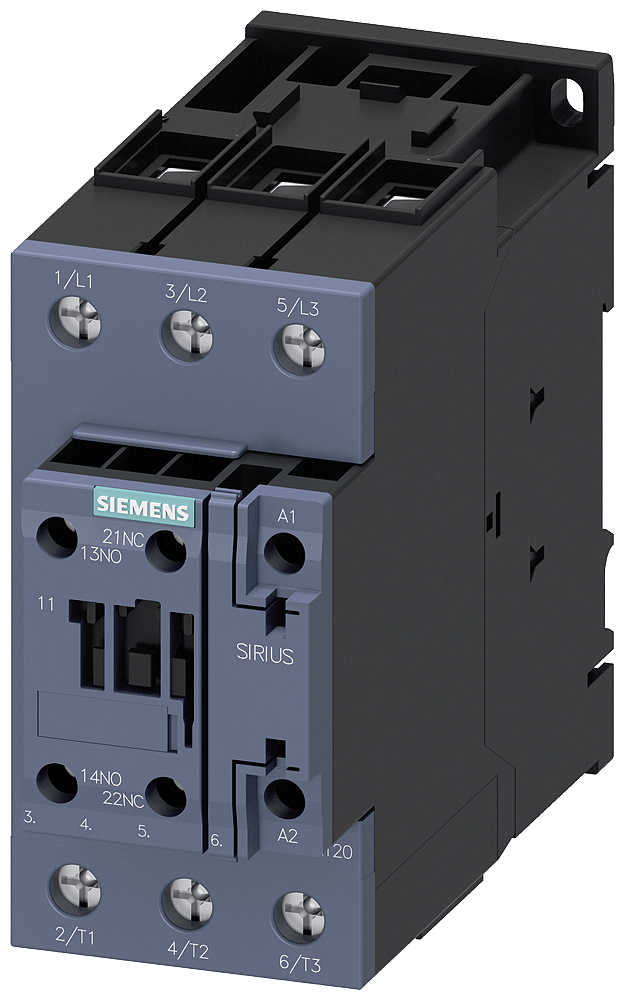

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20361AK601AA0

Item Number	3RT20361AK601AA0
Brand	Siemens Electrical
Height	5.74900 IN
Length	4.84300 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	110 V
Rated control supply voltage Us at AC 60HZ	120 V
Rated operation current Ie at AC-1; 400 V	70 A
Rated operation current Ie at AC-3; 400 V	51 A
Rated operation current Ie at AC-4; 400 V	41 A
Rated operation power at AC-3; 400 V	22 kW
Rated operation power NEMA	29.419949999 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	2.18300 LB
Width	2.44100 IN
