3RT20282XJ400LA2 | CONTACTOR RAIL S0 38A 72VDC 1NO/1NC SP | Siemens Electrical

Cont. f. railw. a., AC-3, 18.5KW/400V, 1NO+1NC, . DC 72 V, 0,7...1,25*us, w. varistor integrated, 3-pole size s0, spring-loaded terminal

Brand: Siemens ElectricalSKU: 3RT20282XJ400LA2

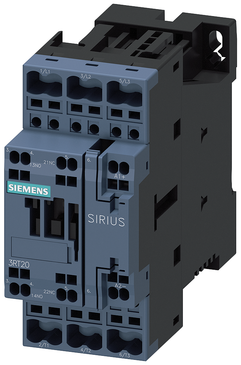

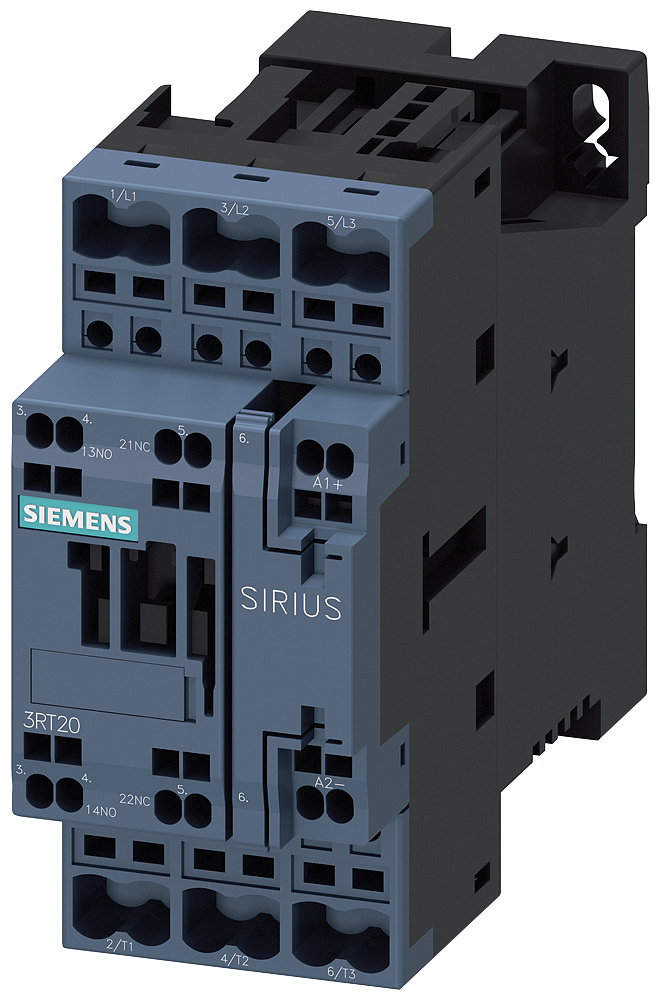

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20282XJ400LA2

Item Number	3RT20282XJ400LA2
Brand	Siemens Electrical
Height	4.3 IN
Length	4.200 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	72 V
Rated operation current Ie at AC-1; 400 V	50 A
Rated operation current Ie at AC-3; 400 V	38 A
Rated operation current Ie at AC-4; 400 V	22 A
Rated operation power at AC-3; 400 V	18.5 kW
Rated operation power at AC-4; 400 V	11 kW
Rated operation power NEMA	18.38746875 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	DC
Weight	1.30500 LB
Width	1.800 IN
