Documents: 3RT20282FB443MA0

Datasheet

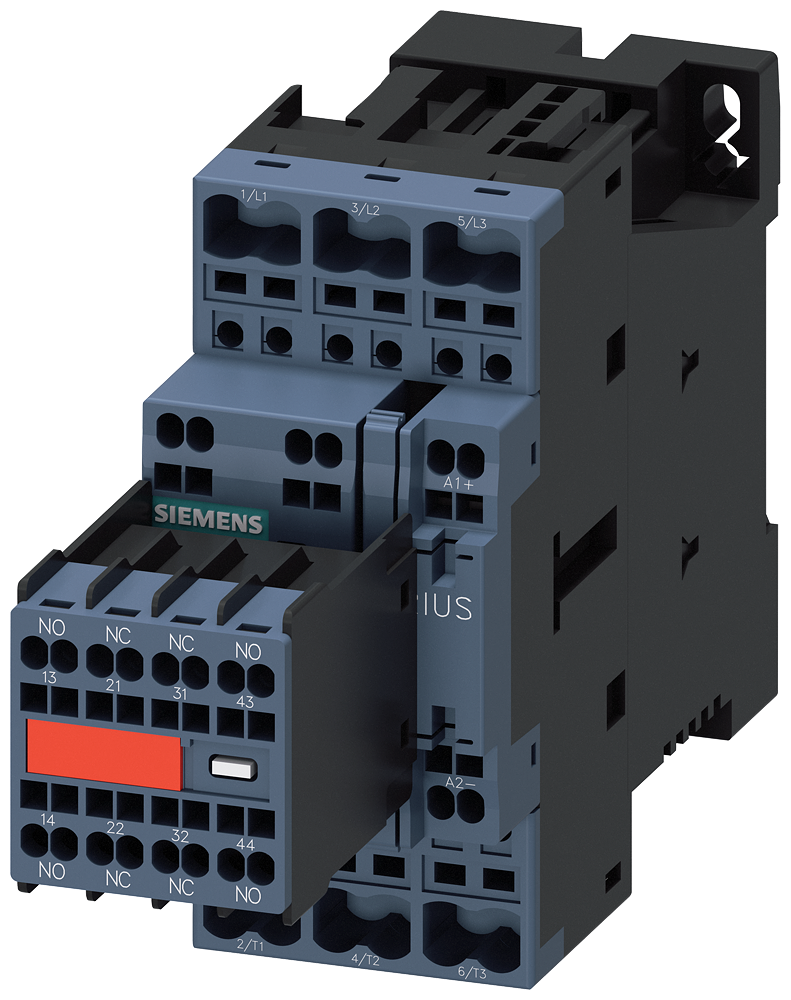

3RT20282FB443MA0 | CONTACTOR S0 38A 24VDC 2NO/2NC SPRG | Siemens Electrical

Contactor, AC-3, 18.5KW/400V, 2NO+2NC, DC 24V, w. plugged-in diode assemblies 3-pole, sz s0 spring-loaded terminal permanent aux. switch for suva applications

Brand: Siemens ElectricalSKU: 3RT20282FB443MA0

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT20282FB443MA0

Jump to: Overview & Specifications Reviews

Overview Details for 3RT20282FB443MA0

Specifications

Item Number	3RT20282FB443MA0
Brand	Siemens Electrical
Height	6.420 IN
Length	4.260 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	24 V
Rated operation current Ie at AC-1; 400 V	50 A
Rated operation current Ie at AC-3; 400 V	38 A
Rated operation current Ie at AC-4; 400 V	22 A
Rated operation power at AC-3; 400 V	18.5 kW
Rated operation power NEMA	18.38746875 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	DC
Weight	1.36400 LB
Width	2.130 IN
