Documents: 3RT20281AP001AA0

Datasheet

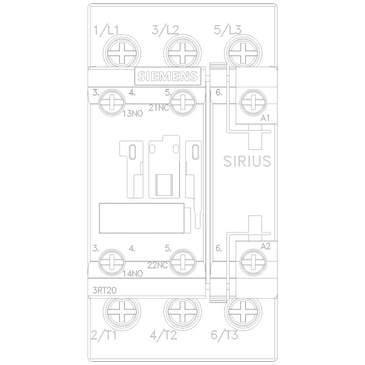

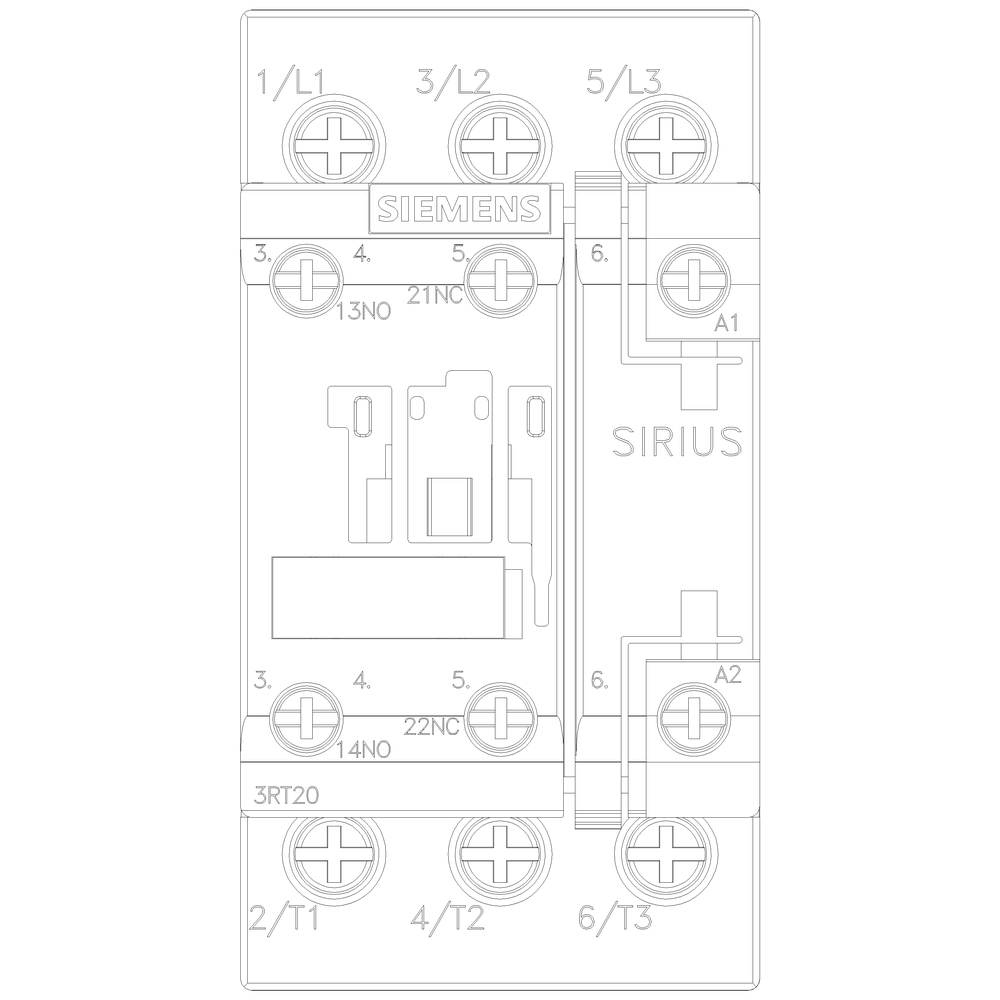

3RT20281AP001AA0 | CONTACTOR | AC3:18 | 5KW 1NO+1NC AC230V 50HZ | Siemens Electrical

Power contactor, AC-3e/AC-3, 38 A, 18.5 kW / 400 V, 3-pole, 230 V AC, 50 Hz, auxiliary contacts: 1 NO + 1 NC, screw terminal, upright mounting position

Brand: Siemens ElectricalSKU: 3RT20281AP001AA0

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT20281AP001AA0

Jump to: Overview & Specifications Reviews

Overview Details for 3RT20281AP001AA0

Specifications

Item Number	3RT20281AP001AA0
Brand	Siemens Electrical
Height	3.660 IN
Length	4.170 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	230 V
Rated operation current Ie at AC-1; 400 V	50 A
Rated operation current Ie at AC-3; 400 V	38 A
Rated operation current Ie at AC-4; 400 V	22 A
Rated operation power at AC-3; 400 V	18.5 kW
Rated operation power NEMA	18.38746875 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	0.930 LB
Width	2.170 IN
