Documents: 3RT20274KB40
3RT20274KB40 | COUPLNG RELAY AC-3 15KW/400V 1NO/1NC | Siemens Electrical
CPLNG RELAY, AC-3, 15KW/400V, 1NO+1NC

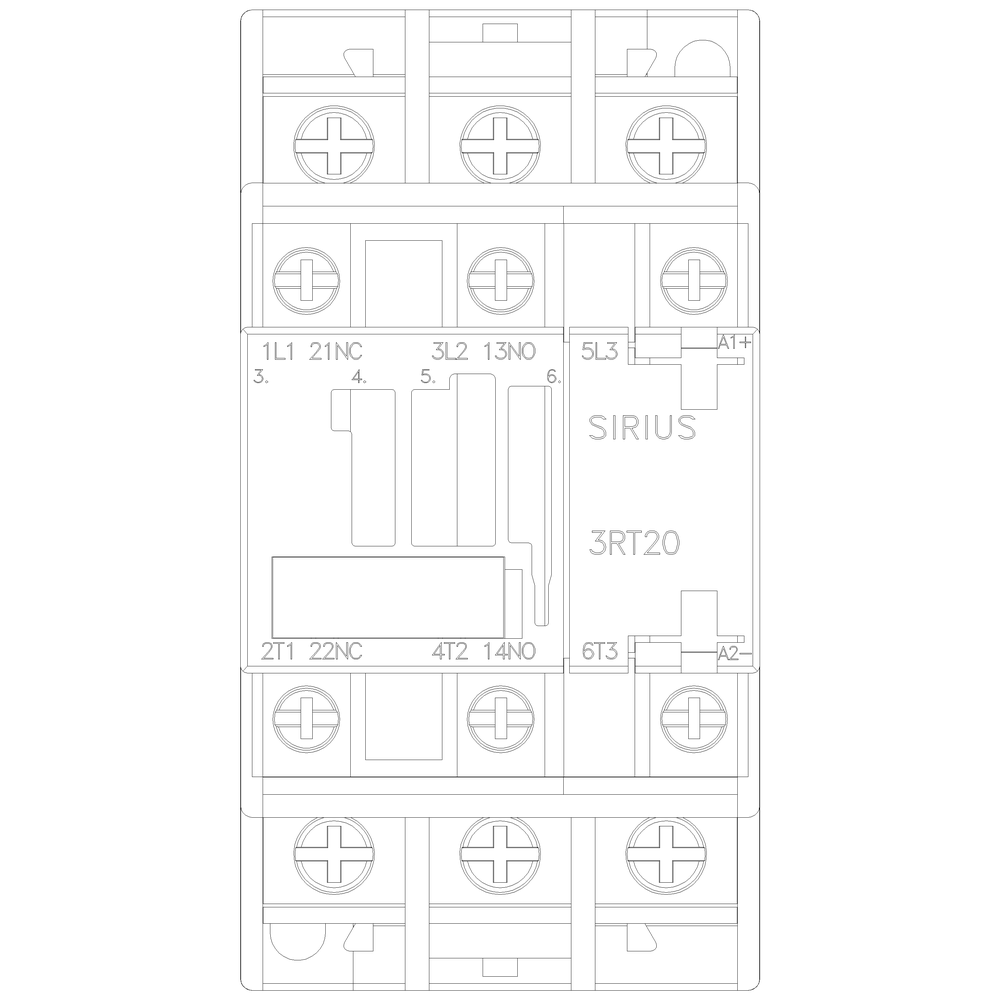

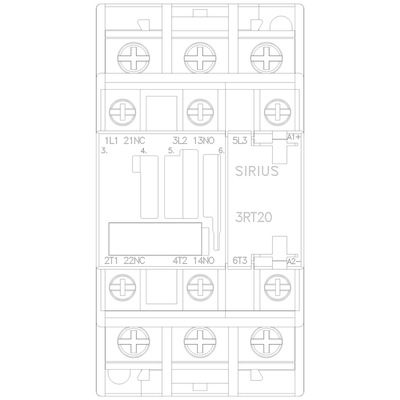

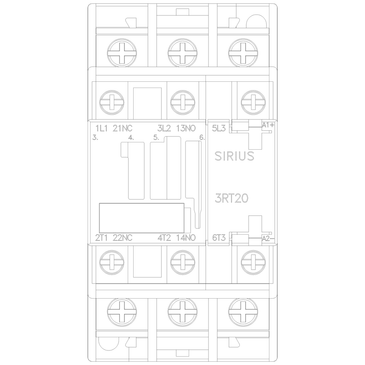

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT20274KB40
Overview Details for 3RT20274KB40
Specifications
Item Number | 3RT20274KB40 |
Brand | Siemens Electrical |
Height | 4.570 IN |
Length | 3.630 IN |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 1 |
Number of auxiliary contacts as normally open contact | 1 |
Number of main contacts as normally open contact | 3 |
Rated control supply voltage Us at DC | 24 V |
Rated operation current Ie at AC-1; 400 V | 50 A |
Rated operation current Ie at AC-3; 400 V | 32 A |
Rated operation current Ie at AC-4; 400 V | 22 A |
Rated operation power at AC-3; 400 V | 15 kW |
Rated operation power NEMA | 14.709974999 kW |
Type of electrical connection of main circuit | Other |
Voltage type for actuating | DC |
Weight | 1.27600 LB |
Width | 2.130 IN |
