Documents: 3RT20272XF400LA2

Datasheet

3RT20272XF400LA2 | CONTACTOR RAIL S0 32A 110VDC 1NO/1NC SP | Siemens Electrical

CONT. F. RAILW. A., AC-3, 15KW/400V, 1S+1OE, AC(40-60HZ)/DC-OPERATED, UC 110V, 0,7...1,25*US, M. VARISTOR INTEGRATED, 3-POLE SIZE S0, SPRING-TYPE TERM.

Brand: Siemens ElectricalSKU: 3RT20272XF400LA2

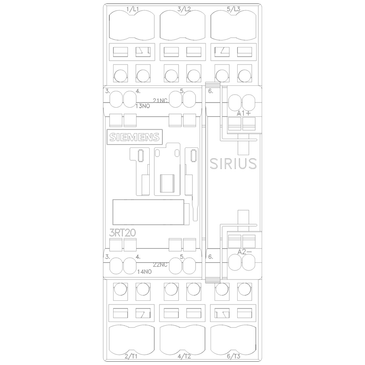

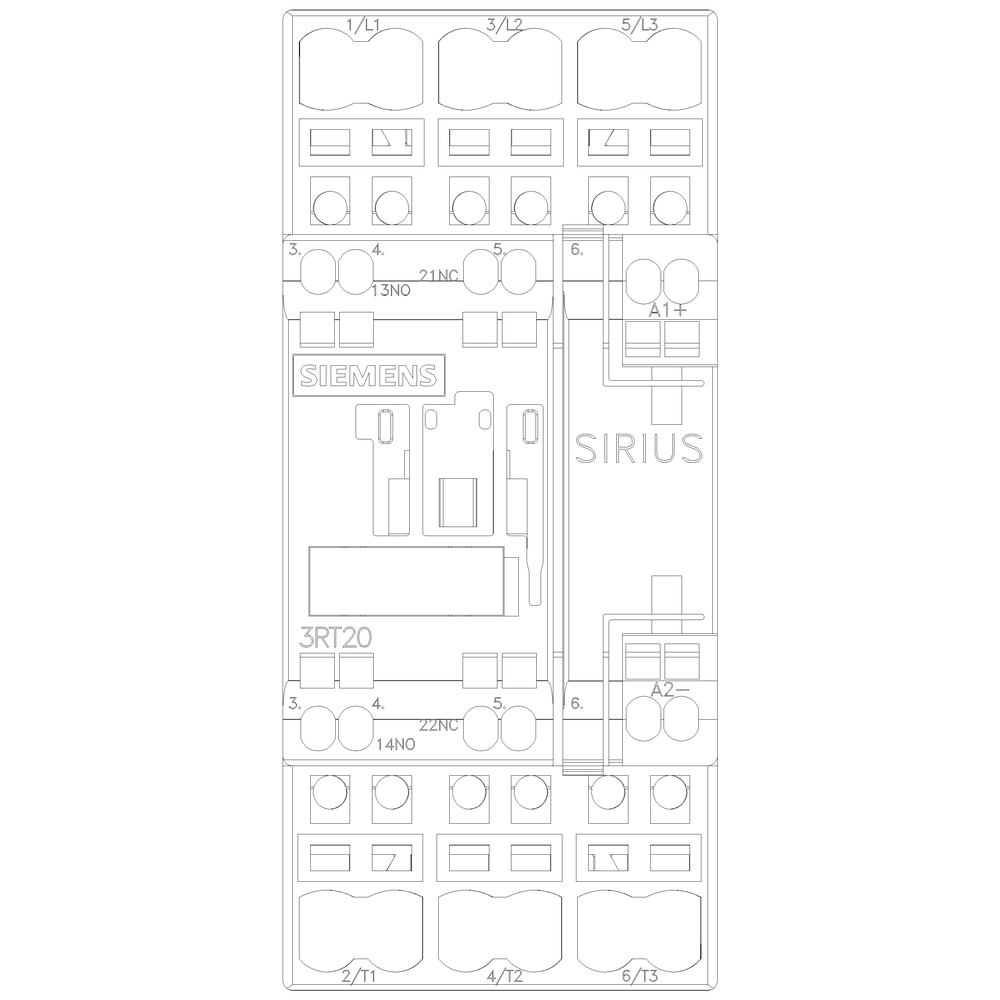

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RT20272XF400LA2

Jump to: Overview & Specifications Reviews

Overview Details for 3RT20272XF400LA2

Specifications

Item Number	3RT20272XF400LA2
Brand	Siemens Electrical
Height	4.570 IN
Length	4.260 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	110 V
Rated operation current Ie at AC-1; 400 V	50 A
Rated operation current Ie at AC-3; 400 V	32 A
Rated operation current Ie at AC-4; 400 V	22 A
Rated operation power at AC-3; 400 V	15 kW
Rated operation power at AC-4; 400 V	11 kW
Rated operation power NEMA	14.709974999 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	DC
Weight	1.27600 LB
Width	2.130 IN
