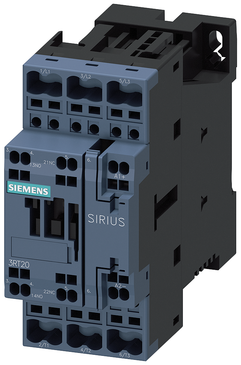

3RT20272KF40 | COUPLNG RELAY AC-3 15KW/400V 1NO/1NC | Siemens Electrical

COUPLING RELAY, AC-3, 15KW/400V, 1NO+1NC, DC 110V, W. INSERTED VARISTOR 3-POLE, SZ S0 SPRING-LOADED TERMINAL

Brand: Siemens ElectricalSKU: 3RT20272KF40

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20272KF40

Item Number	3RT20272KF40
Brand	Siemens Electrical
Height	4.570 IN
Length	4.260 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at DC	110 V
Rated operation current Ie at AC-1; 400 V	50 A
Rated operation current Ie at AC-3; 400 V	32 A
Rated operation current Ie at AC-4; 400 V	22 A
Rated operation power at AC-3; 400 V	15 kW
Rated operation power NEMA	14.709974999 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	DC
Weight	1.320 LB
Width	2.130 IN
