3RT20272AM20 | CONTACTOR S0 32A 208VAC 1NO/1NC SPRG | Siemens Electrical

CONTACTOR, AC-3, 15KW/400V, 1NO+1NC, AC 208V 50/60HZ, 3-POLE, SZ S0 SPRING-LOADED TERMINAL

Brand: Siemens ElectricalSKU: 3RT20272AM20

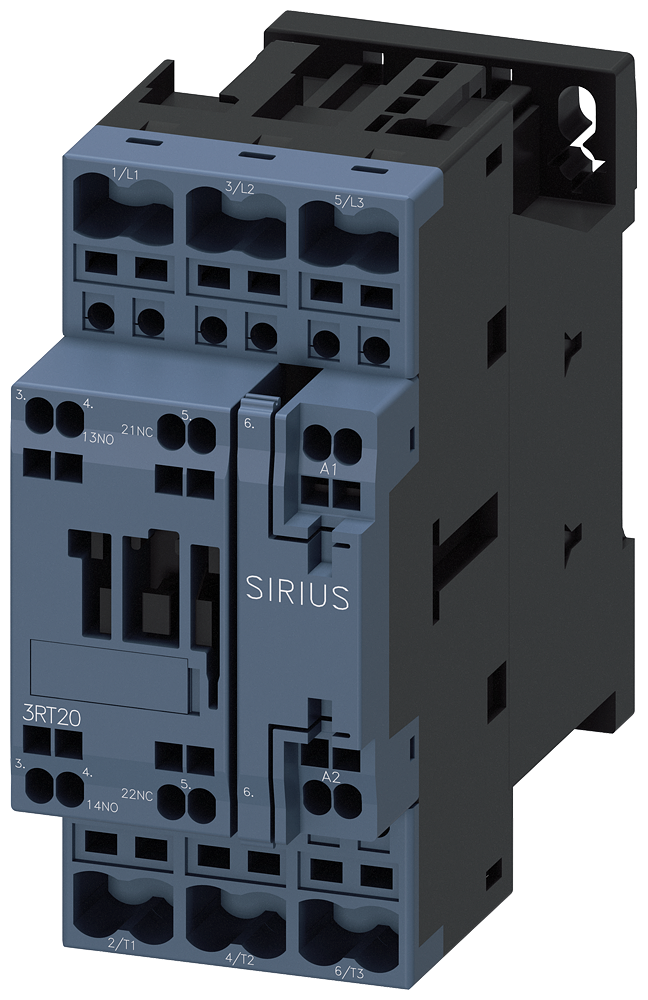

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT20272AM20

Item Number	3RT20272AM20
Brand	Siemens Electrical
Height	4.15400 IN
Length	4.27200 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	208 V
Rated control supply voltage Us at AC 60HZ	208 V
Rated operation current Ie at AC-1; 400 V	50 A
Rated operation current Ie at AC-3; 400 V	32 A
Rated operation current Ie at AC-4; 400 V	22 A
Rated operation power at AC-3; 400 V	15 kW
Rated operation power NEMA	14.709974999 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	AC
Weight	0.95900 LB
Width	2.12600 IN
