Documents: 3RT20272AC20
3RT20272AC20 | CONTACTOR S0 32A 24VAC 1NO/1NC SPRG | Siemens Electrical
Contactor, AC-3, 15KW/400V, 1NO+1NC, AC 24v 50/60HZ, 3-pole, sz s0 spring-loaded terminal

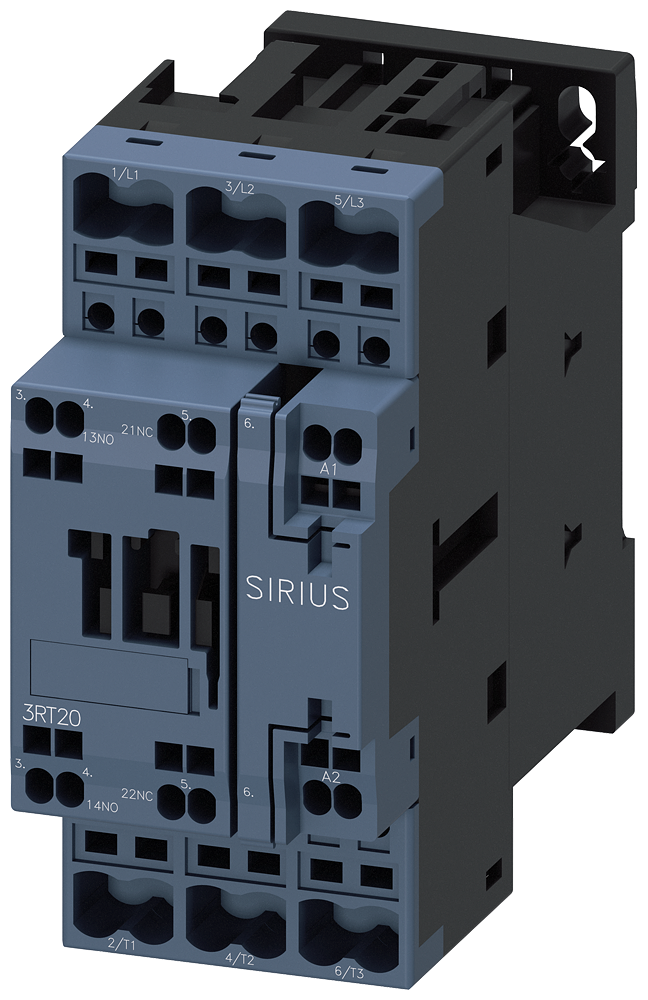

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT20272AC20
Overview Details for 3RT20272AC20
Specifications
Item Number | 3RT20272AC20 |
Brand | Siemens Electrical |
Height | 4.180 IN |
Length | 4.260 IN |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 1 |
Number of auxiliary contacts as normally open contact | 1 |
Number of main contacts as normally open contact | 3 |
Rated control supply voltage Us at AC 50HZ | 24 V |
Rated control supply voltage Us at AC 60HZ | 24 V |
Rated operation current Ie at AC-1; 400 V | 50 A |
Rated operation current Ie at AC-3; 400 V | 32 A |
Rated operation current Ie at AC-4; 400 V | 22 A |
Rated operation power at AC-3; 400 V | 15 kW |
Rated operation power NEMA | 14.709974999 kW |
Type of electrical connection of main circuit | Spring clamp connection |
Voltage type for actuating | AC |
Weight | 1 LB |
Width | 2.130 IN |
